Multi-Rope Friction Lifting Machine Mini Mine Electric Chain Hoist

US$5,000.00-100,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
JKM-1.3×4(1)E
Sling Type
Wire Rope
Lift Speed
>8m/min
Maximum Lifting Height
>20m
Chain Falls
1-4
Certification
CE, ISO9001:2000
Condition
New
Color
as Your Requirement
Name
Mine Hoist
Lifting Height
More Than 500m
Certificate
ISO9001
Transportation
Container
PLC System
Included
Hydraulic Station
Included
Transport Package
in Container
Specification
diameter 2m width 1.5-1.8m
Trademark
citichl
Origin
China
HS Code
8474209000
Production Capacity
1000 Sets Per Year

Product Description

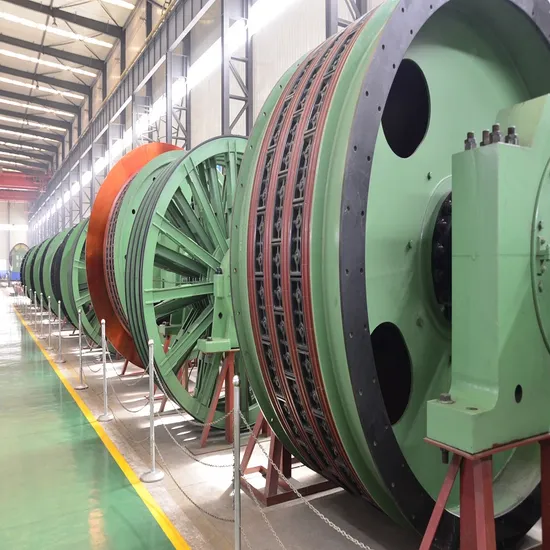

Multi-rope Friction Lifting Machine Mini Mine Electric Chain Hoist
Application Range:
Mine hoist can be divided into two kinds; one kind is JKE series single rope mining hoist and the other is Multi-rope friction hoist.
The products of this series are applied to lifting minerals, equipments, materials and people in coal mine, metal mine and non-metal mine, and hauling or conveying purpose.
Tower multi rope friction mine hoist:
Model Wheel diameter Wire Rope Max
ascension speed		 Reducer Size
(L×W×H)
maximum static tension
m KN m/s Model Speed ratio m
JKM-1.3×4(1)E 100 5 XP550 11.5 6.4×6.5×1.6
JKM-1.6×4(1)E 150 8 XP560 7.35
10.5
11.5		 6.4×7×1.75
JKM-1.85×4(1)E 210 10 XP800 7×7.5×2.02
JKM-2×4(1)E 2 230
180		 10 XP800 7×8×2.2
JKM-2.25×4(1)E 2 215 10 XP800 7.4×8×2.3
JKM-2.8×4(1)E 2.5 335 14 XP1000 8.5×10×2.65
JKM-2.8×4(2)E P2H630 7.5×8.5×2.65
JKM-2.8×6(1)E 2.5 500 14 XP1120 8×8.5×2.68
JKM-2.8×6(2)E P2H800 7.5×8.5×2.68
JKM-2.8×6(3)E 7.5×8×2.7
JKM-3.25×4(1)E 3 450 14 XP1120 7.35
10.5
11.5		 8.9×8.9×2.98
JKM-3.25×4(2)E P2H800 8.5×8.7×2.98
JKM-3.5×6(1)E 3 790 14 XP1250 11.5×9.2×3.15
JKM-3.5×6(2)E P2H900 10.5×9.2×3.15
JKM-3.5×6(3)E 8×9×3.2
JKM-4×4(1)E 3.2 690 14 XP1250 7.35
10.5
11.5		 9×10×3.63
JKM-4×4(2)E P2H900 9×10×3.63
JKM-4×4(3)E 7.5×9×3.63
JKM-4×6(3)E 3.2 1030 9×9×3.63
JKM-4.5×6(3)E 3.6 1330 16 12×9.5×3.9
JKM-5×6(3)E 4 1600

Floor type multi rope friction mine hoist:
Model Wheel diameter Wire Rope Max
ascension speed		 Reduces Size
(L×W×H)
maximum static tension Max
Dia
m KN mm m/s Model Ratio m
JKMD-2.25×2(1)E 2.25 105 22 10 ZZP560(2) 11.5 7.7×9×2.1
JKMD-2.25×4(1)E 215 XP800(2) 7.35
10.5
11.5		 6.8×9.5×2.3
JKMD-2.8×2(2)E 2.8 165 28 XP800(2) 7.8×10×2.65
JKMD-2.8×4(1)E 335 XP1000(2) 8.5×10×2.65
JKMD-2.8×4(2)E P2H800(2) 7.5×10×2.65
JKMD-3.5×2(1)E 3.5 265 35 XP1000(2) 7×9.5×3.02
JKMD-3.5×4(1)E 525 13 XP1120(2) 8.5×9.5×3
JKMD-3.5×4(2)E P2H800(2) 8×9.5×3.02
JKMD-3.5×4(3)E 7.5×9.5×3.0
JKMD-4×2(1)E 4 340 39.5 12 XP1120(2) 7.35
10.5
11.5		 8.2×10×3.4
JKMD-4×2(2)E P2800(2) 7.8×10×3.4
JKMD-4×4(1)E 680 14 XP1250(2) 11×10×3.4
JKMD-4×4(2)E P2H900(2) 10.5×10×3.4
JKMD-4×4(3)E 8.1×8.7×3.4
JKMD-4.5×4(3)E 4.5 900 45 9.5×9.5×3.7
JKMD-5×4(3)E 5 1070 50 9.5×10×4
JKMD-5.5×4(3)E 5.5 1300 55 11×10.5×4.5
JKMD-5.7×4(3)E 5.7 1500 57
JKMD-6×4(3)E 6 1570 57
11×10.5×4.5

After sale service:
1. One year warranty from delivery
2. Free components for replacement within warranty period.
3. Professional solution provider
4. Free technical support at any time.
5. Customer training is available
6. On-site instllation and commissioning is available
7. Sales manager's phone is 24 hours available
Any questions pls call me by mobile 0086-18238804869
