Wet Type of Metal Tube Polishing Machine

Product Description

Wet type of Metal Tube Polishing Machine
Introduce of Bent Pipe Polishing and Grinding Machine:
The machine's unique planetary motion system of abrasive belts can achieve the desired effect of polishing and drawing the surface of curved pipes. The fully automatic feeding system can greatly improve the efficiency and quality of polishing or drawing straight pipes.
The planetary system is a polishing method for round and elliptical pipe surfaces. The pipe itself does not rotate.
The automatic feeding system can adjust the feeding speed and feeding direction to achieve any effect you want. The automatic feeding system has a fast pipe diameter adjustment speed and is very stable. When polishing curved pipes, just move the automatic feeding system away. This polishing machine can start at any part of the pipe.
The CNC round pipe polishing machine is the choice for polishing and drawing the surface of straight or curved pipes.
Machine structure of Bent Pipe Polishing and Grinding Machine:
1. The machine part consists of a polishing system and a workpiece transmission system.
2. The polishing system consists of an adjustment system and a grinding head.
3. The feeding system and the rotation system consist of a roller, a feeder and a motor drive system. (The feeding system is suitable for straight and round tubes.)
4. The electrical control part consists of a control cabinet, a frequency converter and buttons.
5. Fully adjustable automatic feeding. The speed and direction of the automatic feeding are adjustable to help you achieve the desired effect.
Machine Parameter of Bent Pipe Polishing and Grinding Machine:
Product name Multifunctional pipe bending polishing machine (wet and dry polishing)
Machine application Metal pipes of various shapes
Sand belt size (length * width) 940 * 50 mm
Sand belt motor power 2.2 kW
Rotary motor power 1.5 kW
Transmission motor power 180w * 2 sets
Workpiece diameter range 10-110 mm
Accessories Sand belt, automatic feeding
Overall dimensions Length * width * height * (hole center height * platform surface height) 970 * 860 * 1330 * (1080 * 760 mm)
Weight 274 kg
Transmission Maximum 4 m/min
Large plate 960 rpm
Small wheel Maximum 3600 rpm

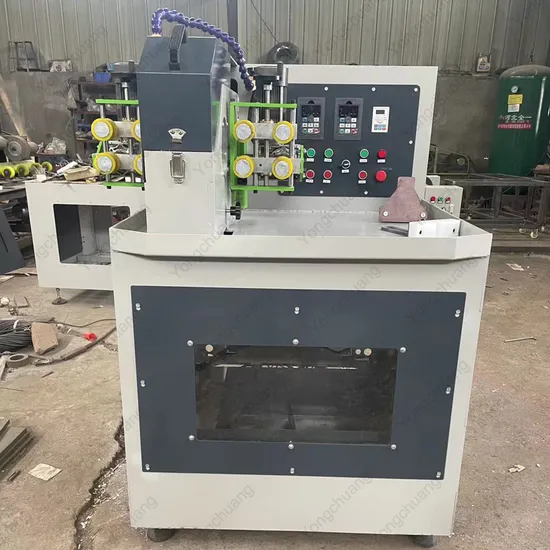

Machine Picture of Bent Pipe Polishing and Grinding Machine:
