Wld Quality Automatic Automotive Electrostatic Metal Coating Spraying Painting Spray Machine Manufacturer System Metal Powder Coating Machine with Curing Oven

Product Description

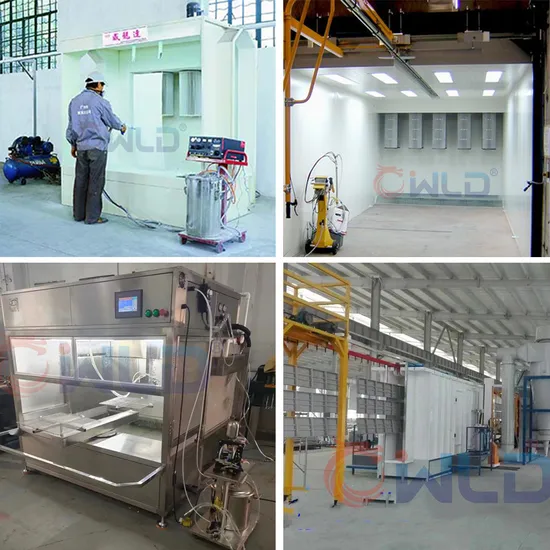

Product Description Industrial powder coating machine booth and curing oven sets

1) Powder coating Booth:WLD type power-recycling equipment.
2) Equipment body size:L2420mm×W1800mm×H2000mm
3) Recycling adopts filter element power-recycling system,configured with polyester fiber filter element,filter material from Taiwan.
4) Filter element cabinet design is flat basic type, convenient for Powder recycling.
5) Back flushing adopts high compressed air,the flushing time controlled by circuit board,back flushing gap fixed at 60 seconds,back flushing time 1 second.
6) Electrostatic powder painting adopts compressed air which processed by drying,drying air compressor equipped by 1.0m3\min.(air compressor provided by customer themselves)
7) Material bill technical index:
Seq#	Item	Material bill,specifications and parameter	Remark
1	Room body wall panel	Power coating galvanized steel panel	1.2mm
2	Bottom panel	Power coating stainless panel	2.0mm
3	Lighting fixture	Autifog lighting fixture	2 lamps
4	Air tank	Seamless steel pipe	ø 140,outfall setting
5	Air pipe, piece	Galvanized pipe,piece	1 inch
6	Fan	Model 4-72-4A	1 set Power supply 380v
		Air Flow:7419m3/h
		Full pressure :1320pa
		Power 5.5KW
7	Filter element specs	φ325×600	4 pieces
Electricity and air system:
1	Fan startup	AC contactor,thermal overload protector
2	Impulse back flushing	Electromagnetism impulse valve
3	Air pressure adjustment	pressure reducing valve

1)Oven
Oven Size: L4600mm×W2400mm×H2200mm	Floor Setting Type	Front and back door both open
1. Technical Parameter:
a) Max Temperature:2200C;
b) Working Temperature:180-2200C;
c) Empty Loading Rising Time:≤45 min.
2. Technical Content:
a) Oven Body:Outside panel adopts δ0.476mm stainless steel,Inside panel adoptsδ0.476mm galvanized stainless steel;
b) Insulating layer adopts volume of 120Kg/m3 rock wool,thickness 100mm;
c) Board and board connected by mosaic structure
d) The ceiling has two explosive-proof holes.
3. Oven Appearance:border white,oven body gray white.

2) Heating System

1. Technical Parameter:

a) Heating source:0# diesel;

b) Power supply:380V;

c) Heating style: Hot air recycling

2. Technical Content:

Recycling fan:rated loading type water-cool Centrifugal fan Model:4-72-3.6#C-3KW 1set Air Capacity:5268m3/H Full pressure:989pa

Burner:G20 Oil Consumption:8-16kg/h Power:320w

3. In-out air duct:adopt δ0.8mm bended galvanized stainless,outer fiber cloth,heat insulation EPS,thickness 50mm;

4. In-out wind groove:adopt δ0.8mm bended galvanized stainless,Inside oven uniformly distributed,Adjustable air flow shutter, assure inside oven temperature uniformly;

5. Heat exchanger:200000 Kcal/hour/set(1set);

6. Inside panel adopts δ1.0mm galvanized steel sheet,outside panelδ1.2mmgalvanized steel sheet;

7. Thermal barrier adopts 10mm thickness aluminum silicate,Temperature resistance 8000C;Thermal barrier adopts 150mm of volume of 120Kg/M3 rock wool;

8. Internal bladder made of stainless steel

3) Control Setting :

1. Automatical temperature control system,up and down limit temperature setting, digital display.

2. This product design accords to international standard,definitely safe when using.

3. Time meter controls constant temperature time,can turn off at a fixed time.

4. One control box,centralized control and easy operation.

mini powder coading booth for small workpiece coating:
single station powder coating booth(machine) for one person operation:
Curing Oven as below:
Automotive painting machine with water curtain(click for details):
Automatic powder coting line for metal sheet/Aluminum/wood workpiece(click for details):
