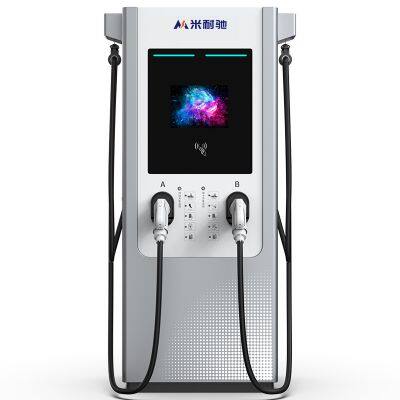

| Product Model | GEVD-601K | GEVD-801K | GEVD-901K |
| GEVD-1201K | GEVD-1501K | GEVD-1601K |
| GEVD-180K | GEVD-2001K | GEVD-2401K |
| Rated Power | 60kW/80kW/90kW/120kW/150kW/160kW/180kW/200kW/240kW |
| Installation Mode | Floor type |
| Routing Mode | In and out |
| Equipment Size | WxDxH 750*478.9*1721mmdue to product upgrade, the machine size may be adjusted, please consult in advance |
| Input Voltage | AC400V±20% |
| Input Frequency | 50HZ/60HZ±10% |
| Output current | 0-200Amax |
| Output Voltage | 200Vdc-1000Vdc |
| Number of Guns | Gun A/Gun B |
| Cable length | 5m |
| Man-machine Interface | 10.1 inch LCD color display touch screen |
| Charging Mode | Automatic charge/amount/time |
| Payment Method | Pay by card/code scan |
| Networking Mode | Ethernet/ 3G/4G |
| Maximum Power Output of a Single Gun | 60kW/80kW/90kW/120kW/150kW/160kW/180kW/200kW/240kW |
| Display Function | Current, voltage, power, status display, etc |
| Operating Temperature | -30～+70℃ |
| Working Humidity | 5%~95%Non-congealing cream |
| Working Altitude | | Class Of Protection | IP54 |
| Cooling Mode | Air cooling |
| MTBF | 100,000 hours |
| Voltage Accuracy | ≤±0.5% |
| Current Accuracy | ≥30A: ≤±1% |
| Voltage Regulation Accuracy | ≤±0.5% |
| Steady flow Accuracy | ≤±1% |
| Ripple Coefficient | ≤±0.1% |
| Standby Power Consumption | ≤0.12% Output rated power +20 |
| Input Impulse Current | ≤110% rated input current |
| Output Overshoot Voltage | ≤110% steady state output voltage |
| Efficiency | ≥95% |
| Noise | ≤65dB |
| Oscillation Immunity | Lv 3（1MHz and 100kHz） |
| Electrostatic Discharge Immunity | Lv 3 |
| Radio-Frequency Electromagnetic Field Radiation Immunity | Lv 3 |
| Electrical Fast Transient Pulse Group Immunity | Lv 3 |
| Surge Immunity | Lv 3 |
| The Immunity OF Conductive Disturbance Induced By RF Field | Lv 3 |
| Power Frequency Field Immunity | Lv 4 |
| Damping Oscillating Field Immunity | Lv 4 |
| Conduction and Radiation Emission limit Requirements | General requirements are listed in Table 5 and Table 6 |
| Harmonic Current Limit Requirements (THD) | ≤5% (Class A equipment) |
| Safety Function | Over voltage protection, under voltage protection, overload protection, short circuit protection, ground protection, over temperature protection, low temperature protection, lightning protection, scram protection, leakage protection |
| Safety Protection | Insulation resistance >10MQ, voltage 2500VA |
| Executive Standard | EN IEC 61851-1:2019 |
| EN 61851-23:2014/AC:2016-06 |
| EN 61851-24:2014/AC:2015 |
