Shanghai Xiyu Amphibious Excavator for Swamp and Wetland with Additional Fuel Capacity

Product Description

Hydraulic undercarriage

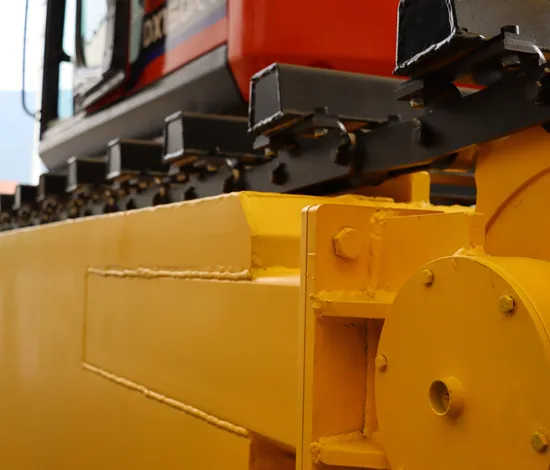

We expertly manufacture pontoons tailored for excavators of all sizes, ranging from 5 tons
to a robust 50 tons.Our engineering team meticulously designs and rigorously tests every
detail of the pontoons. These are then seamlessly integrated with advanced driving motors and our proprietary chains. Notably, we have a decade-long legacy of producing specialized chains.
Material of Undercarriage Pontoons:Our pontoons are typically constructed from high-grade Q355B manganese steel.
Anti-corrosion Tech
Operating underwater demands exceptional corrosion resistance. We have enhanced our procedures by incorporating an automated shot blasting and de-rusting, followed by a dust-free spray paint process and a high-temperature baking paint finish..
Adjustable Pontoon
The roller between the pontoons is adjustable, allowing you to narrow or extend the distance between them. This functionality enables the excavator to operate efficiently in confined spaces while enhancing stability and efficiency when extended in more open areas.
Side Pontoons:These pontoons provide additional buoyancy
, and the side pontoons are fully
re
movable.
In-house Manufactured Chains
Our in-house design and production ensure the highest quality control.
You have the option to choose between two-chain or three-chain configurations. The three-chain configuration is ideal for tough working conditions, as it allows the excavator to return to the maintenance area even if one chain fails.
Chain Composition:Our chains are made from high-strength
40
Cr,
35
CrMo, and 42CrMo. We also offer different connection options
, including bolted or welded connections
.
Vulnerable components
are easily
replaceable.

Track Cleats
Our cleats, produced through precision press molding, are constructed from 700MC, Q960, or other high-intensity materials, boasting remarkable bending resistance. Additionally, we offer cleats made from polymer or aluminum alloy as alternative options.

---
