Gly500 Oil Filter Machine Made in Guangxin

Product Description

GLY500 crude sunflower oil refining machine with capacity 0.5-2TPD 30YEARS FACTORY OF OIL PRESS MACHINE ---Guangxin Ms. Bella Zhang

Oil Press Oil Mill Oil Extraction Oil Processing Machine Oil Filter Oil Refinery Seeds Roaster Machine Product Description
GLY500 Edible Oil Refinery Machine Processing Capacity (t/24h) 0.5-2Tons Per Day,equal to 500L per shif

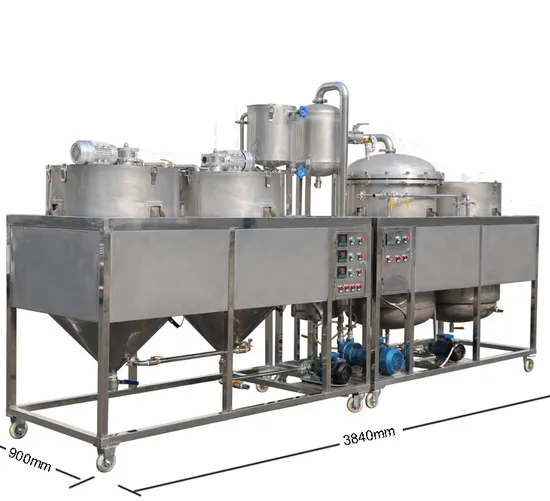

GLY500 crude sunflower oil refining machine with capacity 0.5-2TPD
Advantages of Guangxin GLY500 Oil Refining Machine 1) Flexible combination: GLY500 oil refinery machine consists of refining operation, dehydration and oil filter, two structures,convenient for moving and locating.
2) With hose joint, could transfer oil to refining tank with oil pump, and also could install soft tube on the oil refining pump's outlet to connect with dehydration tank. And could transfer oil between two tanks.
3) GLY500 oil refinery machine is adopted with vacuum dehydration method: low temperature dehydration, short dehydration time, good dehydration result; Due to vacuum dehydration, operation temperature is low so can avoid oil oxidation, high value of perocide, deep color. The oil product is good. GLY500 crude sunflower oil refining machine with capacity 1.5-3TPD

NO.	Item	Specifications	Quantity	Energy Consumption (kW)	Tank Cubage/Operation cubage (L)
1	SpecificationsOil refining tank	DN700*1300	1	12/0.74	330/250
2	Vacuum dewatering tank	DN650*1290	1	12	390/250
3	Vacuum Buffer Tank	DN300*500	1	35	/
4	Vacuum Buffer Tank	DN650*1100	1	/	360/300
5	Vacuum pump	2BV2061	1	1.5	/
6	Oil pump	/	2	0.18-0.37	/
7	Processing Capacity				0.5~2 t/24h ( ton per 24 hours)
8	Measurement				3840*900*2140

Advantages of Guangxin GLY250 Oil Refining Machine 1) Flexible combination: GLY250 oil refinery machine consists of refining operation, dehydration and oil filter, two structures,convenient for moving and locating.
2) With hose joint, could transfer oil to refining tank with oil pump, and also could install soft tube on the oil refining pump's outlet to connect with dehydration tank. And could transfer oil between two tanks.
3) GLY250 oil refinery machine is adopted with vacuum dehydration method: low temperature dehydration, short dehydration time, good dehydration result; Due to vacuum dehydration, operation temperature is low so can avoid oil oxidation, high value of perocide, deep color. The oil product is good. GLY250 crude sunflower oil refining machine with capacity 1.5-2TPD
Guangxin Single Oil Press Machine Processing Capacity 1.3~20TPD (t/24h)

Model	Processing capacity (t/24h)	Residue oil of the cake (%)	Spiral axes rotate speed (r/min)	Main electromotor power (k.w)	Measurement(mm)(L*W*H)	Weight (kg)
YZYX90	1.3	<=7.8	36~40	4	1180*530*1120	195
YZYX90	3	<=7.8	32~42	5.5	1250*530*1140	285
YZYX10(95)	3.5~4	<=7.8	32~40	7.5 or 11	1650*680*1320	520
YZYX10-5(6/8/9)	4.5	<=7.8	32~40	11	1760*680*1320	560
YZYX10J-2	4.5	<=6.0	32~40	11	1820*680*1320	580
YZYX120	6.5	<=7.0	28~40	11 or 15	1860*740*1310	650
YZYX120J	7	<=6.0	35~45	11 or 15	2110*720*1350	720
YZYX130-8/9	8	<=7.6	32~40	15 or 18.5	2020*850*1450	825
YZYX130GX-8/9	8~10	<=7.6	32~42	18.5	2100*820*1400	960
YZYX140	9~11	<=7.6	32~40	18.5 or 22	2010*750*1430	825
YZYX140GX	9~11	<=7.6	30~40	18.5 or 22	2100*820*1380	980
YZYX140CJ	9~11	<=7.6	32~40	18.5 or 22	2200*800*1440	880
YZYX140CJGX	9~11	<=7.6	30~40	18.5 or 22	2280*820*1380	1100
YZYX168	20	<=7.4	36~44	37 or 45	2750*1040*1830	1830

FAQ
Q: Are you a factory or trading company?
A: We are factory with 30 year's manufacturing experiences, and we also have our own trading company. Our main products including: screw oil press, seeds roaster, oil filter, oil refinery machine and spare parts, etc.
Q: How can we verify that you are a factory?
A: You can add our contact information and we will show our factory to you online.
Q: If i don't know how to operate this machine ? How can i do?
A: Our machine has been tested ok and fully assembled before shipping, customer just needs to make 2-4 hours wear-in and then can work.
Q: What's wear-in for new machine?
A: Using 10 KG oil cake +1KG sand +1KG water, mix them, put in oil press, wear in 3~4hs.
1. 1st hour, adjust oil cake thickness as 3mm.
2. 2nd hour, adjust oil cake thickness as 2.5mm.
3. 3rd hour, adjust oil cake thickness as 2 mm.
Q:What are cold press and hot press?
A: Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
Hot press is pressing roasted seeds. Usually only 1 time to get maximum oil. Peanuts need to be roasted to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.)
Q:What serivice we will provide for you?
A: (1) 1year free warranty, whole lifetime maintenance.
(2) Supplying wearing parts all year around.
(3) Supplying technical solutions at any time.
(4) Helping design and plan the oil plants construction.
(5) Providing installation video.
(6) Developing agents with good policies around world.
Q: How can I become a distributor of Guangxin?
A: Contact us immediately for further details by sending us an inquiry.
We will appreciated if these following 2 tips contained in your inquiry. Tips1. The raw material is:_______ Tips2. The capacity of the machine you need is:______ Thank you and looking forward to your inquiry, we will response immediately.
