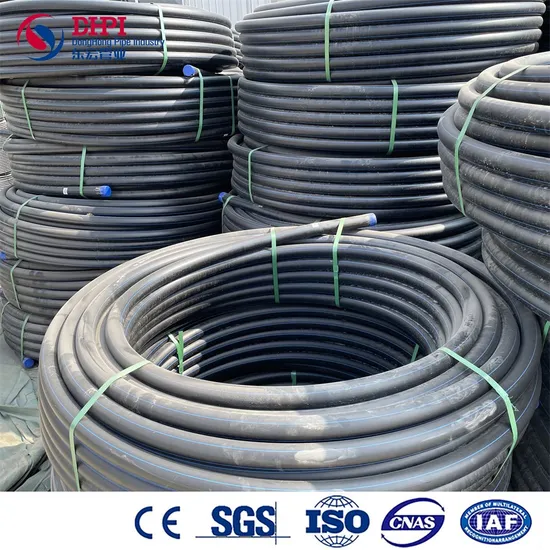

Factory Price 2 Inch Poly Pipe Universal Black PE Plastic HDPE Coil Pipe HDPE Pipe for Irrigation Water Supply Sewage System

Product Description

Hot Selling Pipes
Steel Wire Reinforced PE Composite Pipe	Fiberglass Steel Wire Reinforced Composite Pipe	HDPE Pipe	PVC Pipe
Antistatic Flame Redartant Composite Pipe for Mining	Anti-corrosion Composite Pipe	Thermal Insulated Pipe	Big Carliber Composite Steel Pipe

Product Description
Polyethylene pipe for coal mine is single layer solid wall pipe, using our company self-developed carbon nano tubes (CNT) modified material production, high conductive fiber carbon nano (CNT) instead of traditional carbon black conductive agent added only 30% of the carbon black conductive agent, anti static, flame retardant performance is better than MT181 standard requirements and the performance indexes are higher than the traditional carbon black conductive agent pipeline. In particular, the long-term hydro hydraulic performance of the pipeline is much higher than that of traditional products, and the pipeline system has better safety and long-term use.Connection Method

1. Elctric fusion connection.

2. Butt fusion Connection.

3. Flange Buckle Connection

Product Features

Anti-scaling property
Drawing on the principle of "lotus leaf hydrophobic", organic polymers and special processes are used to raise the water contact Angle on the surface of the pipeline to 111° (standard control ≥105°), far exceeding ordinary polyethylene 88°-92°, which improves the smoothness of the surface of the pipeline, reduces the adsorption capacity of calcium and magnesium ions and other substances in the water to the pipeline, and reduces the energy consumption of the pipeline water. At the same time, the anti-scaling effect and the antibacterial effect of the pipeline cooperate to play the role of the real antibacterial effect of the pipeline, and avoid the problem of non-contact failure between the antibacterial layer and the fluid caused by pipeline scaling. (Water contact Angle: the contact Angle of water droplets on the surface of the material, 90° < water contact Angle < 180° has a hydrophobic effect.) Hydrophobic patency
Compared with conventional plastic pipes, the inner wall is smoother, the flow resistance is reduced, the water transmission capacity is higher, and the inner wall smoothness is better than that of traditional polyethylene pipes, solving the problem of increased energy consumption in long-term operation of the pipe network, and it is a pipeline type designed for the drinking water industry.
Anti-bacterial Performance
The ionic antibacterial agent was added to the inner wall of the pipe. According to the standard of JC/T939-2004 "Antibacterial performance of antibacterial plastic pipe for Construction" tested by Guangdong Microbiological Analysis and Testing Center, the antibacterial rate of the component was > 99.99% against Escherichia coli and Staphylococcus aureus (standard requirements for testing bacteria); It can eliminate microorganisms attached to the tube wall, avoid the breeding of surface microbial film, and has a permanent antibacterial effect.
Terrain adaptability
When the pipe is under pressure, the flexibility of the plastic pipe is taken into account. The flexible laying can reduce the application of pipe fittings and change with the terrain when the terrain settles.
Economical and efficient
The pipe is lighter than the concrete pipe, galvanized pipe and steel pipe, easy to handle and install , and the lower manpower and equipment requirements mean that the installation cost of the project is greatly reduced.
Long Service Life
Polyethylene pipe material has a long-term design life, and the extrapolated service life of the pipe under normal working conditions is 50 years.

Product Advantages

Product Description:
High Hydrostatic strengthGood Oxidation Resistance PerformanceAdvanced integrated equipmentStrict process controlPrecision Meter weight control systemSelf-owned CNAS laboratorySturdy safe connectionExperience top-quality pipe products with Shandong Donghong Pipe Industry Co., Ltd. Our pipes offer high hydrostatic strength, excellent oxidation resistance performance, and advanced integrated equipment. With strict process control, precision meter weight control system, and a self-owned CNAS laboratory, our products ensure reliability and durability. Enjoy a sturdy and safe connection with our pipes, providing peace of mind for your projects.

Product Specification

PE100 Nominal pressure and Specification (GB/T13663.2-2018)
Nomina diameter mm	Nominal pipe thicness en,mm
	Standard Size
	SDR9	SDR11	SDR13.6	SDR17	SDR21	SDR26	SDR33	SDR41
	Pipe Series
	S4	S5	S6.3	S8	S10	S12.5	S16	S20
	Nominal Pressure MPa
	2	1.6	1.25	1	0.8	0.6	0.5	0.4
20	2.3	2.3
25	3	2.3	2.3
32	3.6	3	2.4
40	4.5	3.7	3
50	5.6	4.6	3.7	3
63	7.1	5.8	4.7	3.8	3
75	8.4	6.8	5.6	4.5	3.6
90	10.1	8.2	6.7	5.4	4.3	3.5
110	12.3	10	8.1	6.6	5.3	4.2
125	14	11.4	9.2	7.4	6	4.8
140	15.7	12.7	10.3	8.3	6.7	5.4
160	17.9	14.6	11.8	9.5	7.7	6.2
180	20.1	16.4	13.3	10.7	8.6	6.9
200	22.4	18.2	14.7	11.9	9.6	7.7
225	25.2	20.5	16.6	13.4	10.8	8.6
250	27.9	22.7	18.4	14.8	11.9	9.6
280	31.3	25.4	20.6	16.6	13.4	10.7
315	35.2	28.6	23.2	18.7	15	12.1	9.7	7.7
355	39.7	32.2	26.1	21.1	16.9	13.6	10.9	8.7
400	44.7	36.3	29.4	23.7	19.1	15.3	12.3	9.8
450	50.3	40.9	33.1	26.7	21.5	17.2	13.8	11
500	55.8	45.4	36.8	29.7	23.9	19.1	15.3	12.3
560		50.8	41.2	33.2	26.7	21.4	17.2	13.7
630		57.2	46.3	37.4	30	24.1	19.3	15.4
710		64.5	52.2	42.1	33.9	27.2	21.8	17.4
800		72.6	58.8	47.4	38.1	30.6	24.5	19.6
900		81.7	66.2	53.3	42.9	34.4	27.6	22
1000		90.2	72.5	59.3	47.7	38.2	30.6	24.5
1200			88.2	67.9	57.2	45.9	36.7	29.4

Appliation Cases
Certifications
Company Profile

Automatic Feeding System

Integrated Production Line

Complete Mechanical Control

Comprehensive Test	Xray Product Inspection	One-code Track

Shandong Donghong Pipe Industry Co., Ltd. (referred to as: Donghong pipe industry, stock code: 603856) is headquartered in Qufu, China, the hometown of Confucius. It is an engineering pipeline manufacturer, pipeline engineering service provider, and pipeline engineering general contractor specializing in four categories of functional and customized pipelines:
Special pipelines for rainwater and sewage diversionSpecial pipelines for municipal areasSpecial pipelines for industrial and mining areasSpecial pipelines for national key engineering projectsSpecial pipelines for gas & oilRaw materials of coating materialsMatched pipe fittings for all kinds of pipes.The company has established an industrial ecosystem involving design institutes, financial institutions, port logistics, construction units, and upstream and downstream enterprises. Shandong Donghong Pipe Industry Co., Ltd. is dedicated to becoming a global leading pipeline system comprehensive solution provider, aiming to revolutionize human life with intelligent pipelines and ensure the constant safety of pipeline transportation.
Shandong Donghong Pipe Industry Co., Ltd. boasts a team of over 200 R&D experts and holds more than 100 patents. Leveraging national technology research platforms like the National Enterprise Technology Center and CNAS Laboratory, Donghong pioneers digitalization, informatization, and intelligentization in pipeline engineering. This leadership drives the development of the engineering pipeline industry, supporting crucial national projects like South-to-North Water Diversion and urban water supply integration. With a focus on innovation and quality, Donghong is dedicated to serving key strategic and people's livelihood projects.
FAQ
1. Is your product meets the international standard ?Our products have pass CE, BV, ISO and wars certificate, and all figures indicates higher than standard, you can feel free to let us know which national standard you required, we will check or test it for you.2. What kind of service do you offer ?As a manufacture fatory, we provide pipe products, pipe fittings, package and shipping; as a professional consulation company we provide project consulting advise, pipe system solutions and design suggestions; as an engineering focused enterprise , we also provide pipeline contractor service and pipe repair service, also can give free maintance guidance.3. Do you support OEM/ODM service?Yes, we offer customization in material, specification, logo, package , connection methods andothers. Meanwhile, our professional team can offer solution suggestion for your specified projects, we have successfull cases of that service.4. What's your terms of payment?T/T or L/C at sight.5. How can you gurantee the goods you offered is qualified?We warmly welcome all customers arrange the visit to our company and see our goods in sight, we can also provide strict test as per customer required before order. Meanwhile, before the bulk production, we can dispatch samples for customer to do their own tests to qualify the products.

---
