Automatic Plywood Hot Press with 4X8FT 4X6FT 5X5FT 15~40 Openings

US$25,000.00-50,000.00 1 set (MOQ)

Basic Info.

Model NO.
BY214X8/8-40
Processing Technics
Hot Press
Structure
Frame Type
Pressing Shape
Flat Press
Platen Surface Pressure
Low Pressure
Pressing Layer
Multi Layer
Work Mode
Period
Controlling Mode
CNC
Automatic Grade
Automatic
Certification
CE, ISO
After-sales Service
Yes
Voltage
380V/415V
Heating Medium
Hot Steam or Thermal Oil
Transport Package
Standard Export Packing
Specification
3590*1370*4670mm
Trademark
METRO
Origin
China
HS Code
8465990000
Production Capacity
700sets/Year

Product Description

Main Features
Plywood Hot Press machine is one of the main equipments in producing plywood,blockboard, film faced plywood, fancy plywood.
1.The main frame is welded by No.1 national standard steel plate,strong body, high rigidity.
2. Adopt micro computer control system and imported hydraulic units, easy to operate,long working life.
3. Adopt advanced hydraulic pump station and plunger cylinders, featured product--aviation technology low noisy hydarulic pump.
4. All the hot platens are made of the best quality steel plate, after solid drilled and fine polished, good thermal conductivity.
5. It has manual and automatic transfer function to meet user's demand.
Technical Specifications
1. Various pressure: 400T/500T/600T/800T/1000Ton and more.
2. Plywood sizes: 1220x2440mm, 915x1830mm etc.
Model BY214X8/6-10IIZ
Nominal pressure 6000KN
Feeding direction Horizontal
Layers counting 15layers
Daylight 70mm
size of hot platen 2700x1370x52mm
main cylinders 2pcs x φ400mm x 1050mm (WUXI cylinder)
Heating medium Thermal oil or hot steam
Low pressure pum 2x355L/min
Allowed pressure <5Mpa
Power 2 x 11kw
Control Method Automatic Pumping station
Frame Composite frame for export container
Thickness of steel plate 50mm
Machine weight 45Tons

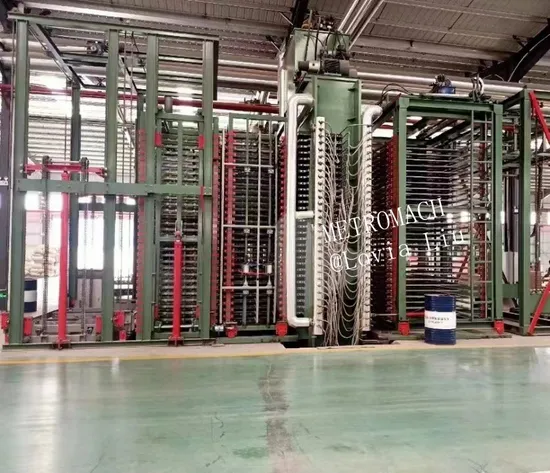

More photos
Packing&Shipping
1. Machine body packed in plastic film
2. Spare parts and electrical parts packed in plywood boxes.
3. Fixed in container with steel wires.
Our Services
1. Design and produce based upon your production need. Provide full sets of drawings and manuals.
2. One year warranty for the machine. Liftetime after-sales service and maintenance.
3. Professional team for oversea machine installation&debugging.
4. Help train and guide machine operating.
