Sinotruk HOWO 6X4 Concrete Mixer Truck for Sale

Product Description

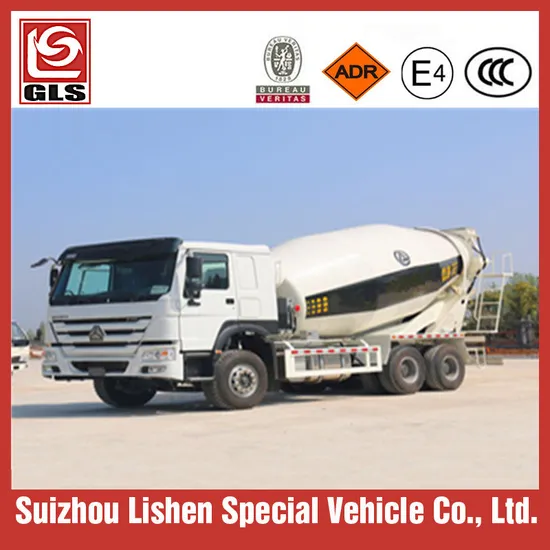

Sinotruk Howo 6x4 concrete mixer truck for sale
Concrete Mix Truck was used to transport construction concrete of special truck; cylindrical mixing drum to carry the concrete mixed on trucks. During transportalways kept stirring drum rotation to ensure that concrete does not carry solidification. After the delivery of finished concrete, usually rinsed with water insidethe mixing drum, to prevent residual concrete hardening space, so the volume of the mixing tube is less and less. Concrete mixer truck device component by truck chassis system and the concrete mixing system . China's production of concrete mixer truck chassis to use more vehicle manufacturers to provide two types of GM chassis. Its special mechanism includes power take off, mixing drum frame, gearbox, hydraulic systems, the mixing tube, the control mechanism, cleaning system.
Working principle is that by PTO take out Truck chassis power, and drive hydraulic system of the variable pump, the mechanical energy into hydraulic energy to quantitative motor, motor and drive reducer, reducer drive mixing plant, for mixing concrete.
SPECIFICATION

Dimension(L×W ×H)(unloaded)(mm)		9355×2496×3880
Chassis Brand		Sinotruk Howo
Engine (Steyr technology, made in China)	Model	WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection
	Fuel type	Diesel
	Power, max(kw/rpm)
	Emission	EURO 2
Fuel tanker capacity(L)		350
Transmission	Model	HW19710,12 forward&2 reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
Steering system	Model	ZF8098
Front axle	Steering with double T-cross section beam
Rear axle	Pressed axle housing, central double reduction with differential locks between axles and wheels
Tyre	12.00R20
Electrical system	Battery	2X12V/180Ah
	Alternator	28V-1500kw
	Starter	7.5Kw/24V
Cab	HOWO76 Standard cab, with air container, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
Mixing System	Mixing Volume	10cbm
	Water tank volume	400L
	Mixing Drum	Body steel plate thickness 6mm, Front end thickness 8mm.
	Others	With China famous brand Hydraulic Pump,Motor,Speed Reducer.

Main products:
1. Oil Tank Truck
2. Refueling Truck
3. Water Tank Truck/ Water Sprinkler Truck
4. Sewage Suction Truck
5. Sanitation Truck
6. Fuel Tank Semi Trailer
7. Oilfield Truck
8. Chemical Liquid Tank Truck
9. Cement Powder Tank truck/ Bulk cement truck
10. Flatbed Trailer
11. Container Semi Trailer
12. Self-loading Garbage Truck, Garbage Compactor Truck, Sealed Garbage Truck
China Tank Truck Manufacturer.
MOQ: 1 unit
Payment Terms: T/T, L/C
Packing: nude cargo
Delivery Time: within 30 days after receipt of the 30% deposit.
Contact information
Suizhou Lishen Special Vehicle Co., Ltd.
Address: No. 348 jiefang Road, Liushutang Industry Park, Suizhou, Hubei, China
Mobile:+8618872985554
Welcome to visit our factory.

---
