Rollformers Double Layer AG and R Panel Roof Roll Forming Machine

Product Description

Full Automatic Double Layer Roll Forming Machine
Design Idea:
Stable Transmission: Double chain and gear drive,keynote rollers design.Full Automatic Easy Operation:Whole producing line just need one person for operation.
Product Parameters

R Panel Roll Forming Machine Hot Sale To America
Raw Material	PPGI,PPGL
	Material Thickness:24/26 Gauge (0.4-0.6 Mm)
Machine Frame	350mm H Beam Structure, With 18mm Welded Steel Middle Support Plate.
Material Of Rollers	High Grade 45# Forged Steel
	Chromed Treatment (Chrome Thickness:0.05 Mm), Make The Rollers Surface More Smoothly, Improve The Hardness And Prevent Abrasion,Anti Corrosion Increase Of Service Life.
Forming Stations	Roller Stations :18 Rows
	Rolling Type: Separate Rolling Design Concept, It Can Release Internal Stress From The Sheets, Then The Sheet Will Be In Good Shape And High Precision.
Diameter Of Shafts	Φ80mm Solid
Material Of Shafts	High Grade 45#,With Heat Treatment
Forming Speed	15 M/Min
Voltage	380v/50hz/3p (As Requested)
Transmission Way	By 1 Inch Chain (Double Chains)
Main Motor	11 kw
Cutting Blade Material	Gcr12 quenched treatment
Cutting Type	hydraulic post cutting
Driving Method	By pillar type Cylinder

Detailed Photos
Double-layer
roll forming machine
The advantage lies in its economic efficiency, high productivity, and ease of operation, which can meet the needs of users to produce various types of pressed tiles in a limited space.

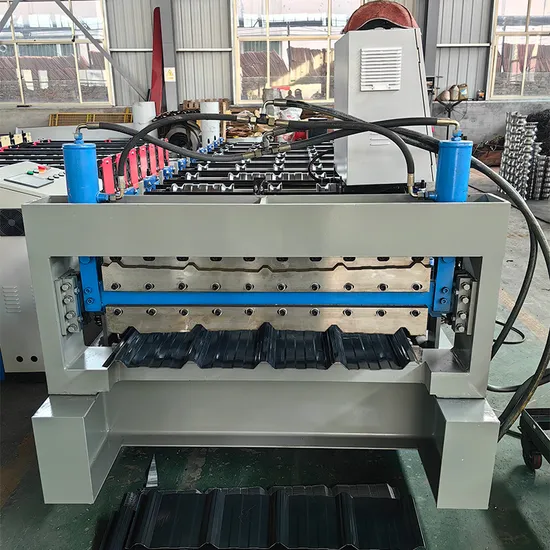

Hydraulic Cutting Device
1.Work type:hydraulic servo track cutting servo motor 5.5KW 2.Driving method:By pillar type Cylinder
3.Hydraulic motor power:4 kw
4.Cutter material :GB-Cr12 with heat treatment
5.Cutting length tolerance ±10m/2mm

Feeding Device
1.Hand wheels on both sides can be used to adjust the feeding width.
2.Four stainless rollers can make the material go into the
machine smoothly and prevent the scratch on the material surface.
3.There are three rows of orange plastic rollers can make the
steel coil go into the machine smoothly.

Roll Forming And Transmission Device
1.rollers thick chromed good hardness for long service time.
2. Each roller has number and with keynotes, it can fix on the shaft stablely
3.gear and double chain,stable

PLC control system
PLC brand:Delta(Taiwan) PLC, and transducer and touched screen
1.Encoder brand:Omron
2.Electrical components:Schneider
3.Operating language:English and Chinese(or as requested)
You can set the orders on this part,changing product length and quantity,it is really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.

5T Manual Decolier For Free
Capacity:5 tons Coil inner diameter:450-550mm Feeding width: max 1220mm Structure: welded by the steel plates and profiled bar.
The shrink and expand of core is manually, with manual brake,The coil moving forward or reverse is pulled by roll forming machine

Hydraulic station
1.Hydraulic station motor:5.5KW
2.Hydraulic oil:46# hydraulic oil
3.Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism valve

Hot-Selling Tile Plate
Company Certificate
Company Profile
Our Customers
Packaging & Shipping
FAQ
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

---
