Aluminum Gold Foil Printer Printing Machine Automatic Digital Hot Foil Stamping Machine for Paper

Product Description

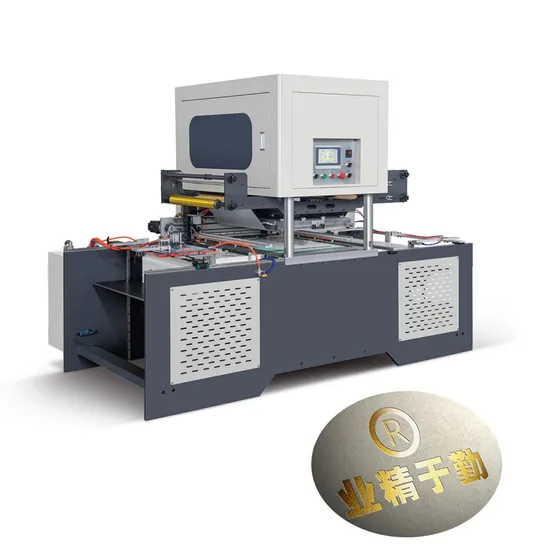

Hot Foil Machine Aluminum Gold Foil Printer Printing Machine Automatic Digital Hot Foil Stamping Machine for Paper
LY series of fully automatic hydraulic hot stamping equipment can efficiently complete product hot stamping and embossing, while ensuring the highest precision and product quality. The LY series of fully automatic hydraulic hot stamping equipment has rich hardware configurations and can adapt to the hot stamping requirements of a variety of products.
(1)The entire machine is made of Q235 carbon steel, and the fuselage wall panels are treated with special processes to ensure high strength and never deform, ensuring the safety of the fuselage wall panels.
(2)Taiwan hydraulic components are used to ensure accurate machine movement. The host pressure has an overload protection device, and the synchronization is equipped with a fracture protection device. It will automatically stop when there is an external impact, reducing damage to the fuselage and suction and discharge accuracy, and avoiding the occurrence of malfunctions.
(3)The main engine uses imported original bearings.
(4)Part of the whole machine uses original electrical appliances imported from Japan Omron and others.
(5)The hot stamping accuracy reaches ±0.1mm, and the maximum speed of the machine reaches 1800 sheets/hour. Technical parameter

Model	LY-800Y
Max.paper size	800x580mm
Min.paper area	200x150mm
Min.paper weight	105g
Max.hot stamping area	720x520mm
Max.gold paper size	120mm
Max.working speed	25/min
Max.hot stamping pressure	30T
Pressure	7Mpa
Installed power	15kw
Total height of paper stacking	550mm
External dimensions	2600x1500x1800mm
Hydraulic station size	800x800x500mm
Weight	2.2T
Power supply(three-phase four wire)	380v/50Hz

After Sales Service 1.Quality Commitment: one year guarranty,Lifelong maintenance, Vulnerable parts are provided free of charge within 12 months.2. After-sales Service: 24hours online to help customer solve problem.3. Operation Guide: after the customer receives the goods, the engineer will guide the installation throughout.4. Machine Parts: all machine parts are imported from famous imported brands, which are convenient for customers to repair and buy by themselves.

1. Who are we? We are based in Zhejiang, China, start from 2000,sell to Domestic Market(15.00%),South Asia(15.00%),Southeast Asia(15.00%),SouthAmerica(11.00%),North America(9.00%),Africa(8.00%),Oceania(8.00%),Mid East(7.00%),Eastern Europe(7.00%),Central America(5.00%).There are total about 50 people in our office. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3. What can you buy from us? Paper Bag Making Machine,Slitting Machine,Printing Machine And Handle Machine. 4. Why should you buy from us not from other suppliers? We have more than 20 years of rich experience for machinery manufacturing. 5. What services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW; Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,Western Union,Cash; Language Spoken:English,Chinese

---
