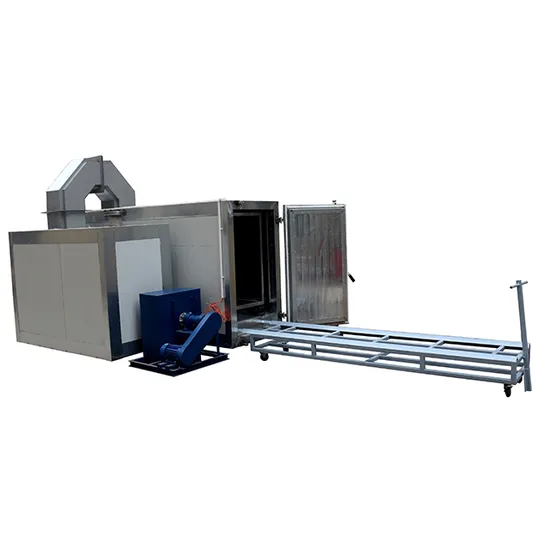

Two Doors Gas Powder Coating Industrial Drying Oven (Colo-0813)

Product Description

Two Doors Gas Powder Coating Industrial Drying Oven (Colo-0813) Brief of COLO powder coating oven:
with Two opening Door .can make your work more efficiency
Model: COLO-0813Heating Source: by gas/diesel/LPGWorking size: width800 xdepth 3000x height 1500mmApplication: this small gas powder coating oven is suitable for curing thin and long products

Specification of the powder coating oven:
Techinial Specifications

Name:	COLO-0813 Gas Powder Coating Oven
Working diamension	width800 x depth 3000x height 1500mm
Overall Diamension	width1200 x depth 3500 x Height 1800mm
Heating supply:	gas
Voltage	380V(50-60Hz)
Heating time	15-30 min(180'C)
Heating Temp.	180-250'C
Burner	Italy RIELLO brand.
Circulation/Air Flow	vertical
Motor Power	1.5kw

Gas Powder Coating Oven Structure

Item	Name	Qty
1	Chamber	1 set
2	Fan Motor	1 set
3	Electrical Cabinet	1 set
4	Trolley	1 set
5	Buring room	1 set
6	RIELLO burner	1 set

Drawing
use great 100mm rock wool Products Details
1.long lifespan: indirect heating like gas/diesel/LPG oven, with heating exchange room .will use longer than electrical powder coating oven2. saving energy and cost: firing gas or diesel cost less of energy3. good curing effect on the metal surface. We use good material and components to achieve perfect warm insulated system: 1) inner wall:Galvanized Steel(thickness=1~1.5mm), 2).interlayer: rock wool board(thickness=100~120mm), insulated, maintain the inside temperature3).outer wall: Color Steel(thickness=1-1.5mm), anti-rust4.PLC control system for easy operation You can setting heating time and temperature on the panel. When the heating time arrive, the system will stop automatically.
Shipping Customer Visiting&Exhibition We have went to many exhibitions durning our 11 years running .Also many customers visit our company ,check the goods and discuss to expand our business . Buying Guide
If you are interested in this product ,pls feel free to contact us
Address : No.57 Xiangcang RD,Xihu District,HangZhou city, China

---
