Premium Excavator Grab Tool for Enhanced Digging and Grabbing

Product Description

Product Description

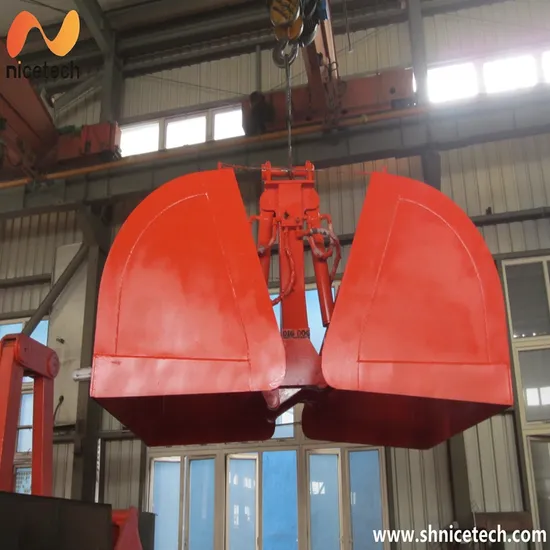

The hydraulic double lobe grab is mainly composed of lifting device, bearing beam, oil cylinder, shunt body, bucket body, etc. The bucket body and the bearing beam are connected by a pin shaft; The piston end of the cylinder is fixed above the bearing beam, and the piston rod is fixed on the upper part of the bucket body. With the cylinder piston rod retracting and extending, the bucket body rotates with the beam pin as the hinge point to complete the opening and closing of the grab. The connecting plate effectively adjusts the opening and closing positions of the two buckets to ensure synchronous rotation of the left and right buckets.
Key words:remote control grab,cable grabs,orange peel grab,cargo grab,rope grab msa,vessel grab,timber grab,vessel grabs,hydraulic grab bucket
Detailed Photos
The hydraulic double-lobe grab is used with the excavator, which has no power itself, and relies on the high-pressure hydraulic oil provided by the excavator as the power. The excavator leads a high-pressure hydraulic oil into the opening and closing system of the grab, and controls the opening and closing of the grab by controlling the extension and retracting of the cylinder; Another high pressure hydraulic oil is led into the grab rotation system, and the grab rotation is controlled by controlling the rotation of the hydraulic motor.
Excavator hydraulic double-lobe grab is widely used in construction, transportation, excavation, demolition, loading and unloading and other fields. It is particularly suitable for excavation and loading on the side of trenches or confined Spaces, as well as loading and unloading operations of ships, trains, automobiles . In addition, it can also be used for loading mud, sand, coal, gravel and other bulk materials

Product Parameters

(Shnice)	(m3)	(Kg)	(t)	(bar)			(mm)
					(°)	(t/ m3)	A	B	C	D	E
ShniceG1.6-160	0.16	590	1	350	30	1.6	1850	1360	1420	1720	330
Shnice1.6-220	0.22	610	1	350	30	1.6	1850	1360	1420	1720	400
Shnice1.6-280	0.28	650	2	350	30	12.6	1850	1360	1420	1720	500
Shnice1.6-330	0.33	690	2	350	30	1.6	1850	1360	1420	1720	600
Shnice1..6-370	0.37	750	2	350	30	1.6	1850	1360	1420	1720	700
Shnice1.6-440	0.44	780	2	350	30	1.6	1850	1360	1420	1720	800
Shnice2.0-160	0.16	740	2	350	30	2	1980	1420	1340	1740	280
Shnice2.0-180	0.18	770	2	350	30	2	1980	1420	1340	1740	330
Shnice2.0-220	0.22	790	2	350	30	2	1980	1420	1340	1740	400
Shnice2.0-280	0.28	820	2	350	30	2	1980	1420	1340	1740	500
Shnice2.0-330	0.33	840	2	350	30	2	1980	1420	1340	1740	600
Shnice2.0-400	0.4	920	2	350	30	2	1980	1420	1340	1740	750
Shnice2.0-500	0.35	980	2	350	30	2	1980	1420	1340	1740	900
Shnice2.6-260	0.26	1280	3	350	30	2.6	2200	1520	1480	1990	400
Shnice2.6-400	0.4	1360	3	350	30	2.6	2200	1520	1480	1990	600
Shnice2.6-520	0.52	1450	4	350	30	2.6	2200	1520	1480	1990	800
Shnice2.6-630	0.63	1760	4	350	40	2.6	2200	1520	1480	1990	950
Shnice2.6-800	0.8	1860	4	350	40	2.6	2390	1580	1660	2160	1000

Packaging & Shipping
Company Profile
Shanghai Nice Equipment Technology CO.,LTD
is specialized in design,manufacturing, development and marketing all kinds of machines, including port machine/marine crane/engineering machines, with reliable production processing , perfect testing defections , strict quality guarantee system.
our product range :remote control grab, electric hydraulic grab,mechnical grab. singe rope control grab, two rope control ,four rope control grab,clamshell bucket, electric hydraulic orange peel grab , dreding grab,log grab ,movable hopper, wheel hopper, hopper for grain, ECO hopper, port hopper, hopper load system, dustproof hopper, diesel driven hopper, cement hopper, dedust ECO hopper,etc .

The company has 20,000 square meters of standard production plant, with a variety of professional production equipment dozens of sets, at the same time has a strict production process and perfect quality assurance system. The company produces all kinds of "purple stone" brand standard and non-standard loading and unloading machinery.


After Sales Service
1.Pre-sale services:
a: Design customized project for clients.
b: Design and manufacture products according to clients special requirement.
c: Train technical personnel for clients.
2.Services during the sale:
a: Help clients to find reasonable freight forwarders ahead of delivery.
b: Help clients to draw solving plans.
3.After-sale services:
a: Assist clients to prepare for the construction scheme.
b: Install and debug equipment.
c: Train the first-line operators.
d: Examine equipment.
e: Take initiative to eliminate the troubles immediately.
f: Provide technical exchanging.

FAQ
1)How many years of your factory?
We have 20 years production and nearly 10 years experience, we exported to more than 120 countries & regions.
2) Which kind of payment you can be accepted?
Normally both of T/T & L/C at sight are ok for us.
3) How about the delivery time?
7-40 working days after received 30% T/T or L/C.
4) What's your warranty?
Normally is 1 year, if large quantities we can negotiate.
5) What's your MOQ?
MOQ: 1 set
6) Can you accept OEM service?
Yes for sure my friend.
7) Optional Attachment?
Remote Control, Basket, Auger, Grapple, Top Seat, Rear Legs.

---
