Product Description
Product Description

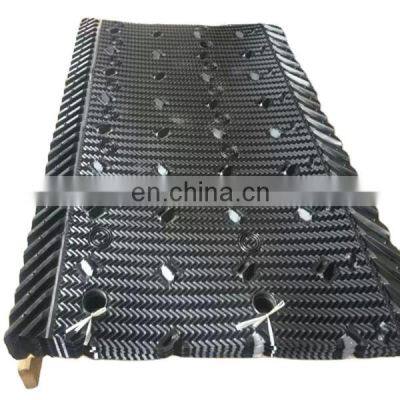

Product DescriptionPVC PP Hanging film type CrossFlow ML MX75 cooling tower fillerThe role of cooling tower fills in the cooling tower is to increase the heat dissipation and prolong cooling water retention time,increase the heat transfer area, increase the heat transfer.There are two type material of cooling tower filler is PVC PP Cooling tower can be dividedMarley fills is a hanging film type cooling tower fill which spreads the water into a thin film, flowing over large verticalsurfaces, promoting maximum exposure to air flow.Applied tower:bread cooling towerbaltimore cooling towerbrentwood cooling towerevapco cooling towerfrp cooling towerbaltimore cooling towerkingsun cooling towerliang chi cooling towerpaharpur cooling towersThe width are 610mm, 750mm,813mm,915mm,1000mm,1220mm,1520mm, the new mould and machine for 1900mm width ML fill is in development.We believe it will be successful in the near future, that will bring much convenient for customer in the installation and application.The length of ML cooling tower fill can be customized. The normal length are 1854mm, 2060mm, 2450mm, 2678mm, 2980mm,3090mm. The pitch is 19-20mm, that means the distance between two loose fill sheets is 19-20mm.It is hanging on the fiberglass tubes in the cooling tower 2 sides. And it has A type and B type which make two loose sheets joint points match very well.MaterialLengthWidthThicknessPitchCustomized SizePVC/PP1854mm610mm0.3-0.45mm19-20mmYes2060mm750mm2450mm813mm2678mm915mm2480mm1000mm3090mm1220mm1520mmIt is the major parts to improve cooling tower workingefficiency and make sure the economy and safe operation. With the development of the plastic industry, counter-current tower drench water plastic packing "S" shape ladder wave, inclined corrugated fills, which has the advantages of heat dissipation, durable, good performance, ventilated small resistance..etc.Based on the easy and other advantages it is widely used in different types of large,medium and small cooling towers.Detailed ImagesPacking & DeliveryDifferent cooling tower fills for different cooling towers.we supply various of cooling tower media,more informaiton please contact with alisaFAQ & ContactsQ: Are you trading company or manufacturer ?A: We are manufacturer with our own factory.Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge. And the freight cost will on the buyer's side.Q: What is your terms of payment ?A: Payment<=USD1000, 100% in advance. Payment>=USD1000, 30% T/T in advance ,balance before shipment.If you have other questions about PVC packaging material cooling tower fill media replacement price cooling tower filling, please feel free to contact us as below:
>>
