0.8m Airbag Application for for Ship Docking and Launching

Product Description

0.8m Airbag Application for for ship docking and launching

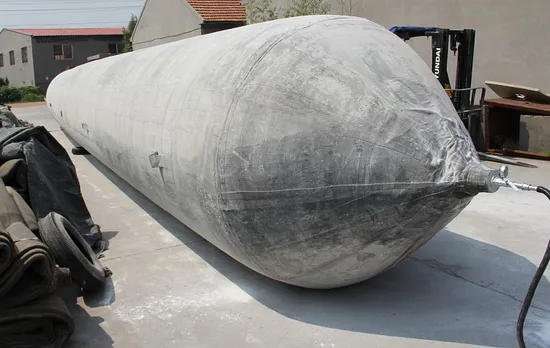

Marine airbag are widely used for ship docking and launching, large heavy objects
lifting and moving, sunken ship salvaging and stranding rescue etc. Compared with the traditional sliding plate and slipway,airbag has the feature of saving time and labor, less investment, flexible, safe and reliable. etc.
Our factory has invested a large amount of labor, material and energy, brought together much professional knowledge in rubber, chemical etc. invested a high strength, overall winding high pressure anti-explosion type airbag. The advantage of this kind of
airbag is: it's internal skeleton structure is more scientific, there's no joint in the whole airbag body,the skeleton materials' resistant to pull force can be fully used. Overcoming the weakness of the uneven internal pressure that acts on the airbag body, also avoiding
the problem of peeling off of the layers, bubbling and the danger of a sudden explosion. By many times strict test, the brute force, tensile strength , anti-aging, abrasion resistance etc. indicators of our airbag ranked the forefront of industry. All the natural rubber we used are 1L,3L in best quality , to ensure the sturdy and durable of the product and safety in use; the production technology adopted the advanced technological standard in industry; the complete testing equipment in our company ensure that the raw material, semi-manufactures and finished products pass tests one by one, and make airbags have good bearing capacity, good air tightness, easy to repair and long lifespan, safe and reliable, the product is widely used throughout the world and win the praise of customers.

Diameter(m)	Layers	Length(m)	application
0.8	5+1	From 5m to 25m	Small boat ,ship and so on
1.0	5+1/6+1	From 5m to 25m
1.2	5+1/6+1	From 5m to 25m
1.5	5+1/6+1/7+1/8+1	From 5m to 25m
1.8	5+1/6+1/7+1/8+1	From 5m to 25m	Large boat ,ship and so on
2.0	6+1/7+1/8+1/9+1/10+1	From 5m to 25m
2.5	7+1/8+1/9+1/10+1	From 5m to 25m
remark	5+1means 5 layer dipped cord fabric +1 layer outer rubber

Some normal sizes of our lift bags , customized sizes are also available
Diameter(m)	Effective Length(m)	Layer	Pressure(MPa)
1	10	5~6	0.07~0.10
1	12	5~6	0.07~0.10
1	15	5~6	0.07~0.10
1.2	10	5~6	0.08~0.12
1.2	12	5~6	0.08~0.12
1.2	15	5~6	0.08~0.12
1.5	12	5~8	0.08~0.16
1.5	15	5~8	0.08~0.16
1.5	18	5~8	0.08~0.16
1.5	20	5~8	0.08~0.16
1.5	24	5~8	0.08~0.16
1.8	12	5~8	0.08~0.15
1.8	15	5~8	0.08~0.15
1.8	18	5~8	0.08~0.15
1.8	20	5~8	0.08~0.15
1.8	24	5~8	0.08~0.15
2	18	6~10	0.08~0.18
2	20	6~10	0.08~0.18
2	24	6~10	0.08~0.18
2.5	18	7~10	0.07~0.13
2.5	20	7~10	0.07~0.13
2.5	24	7~10	0.07~0.13

---
