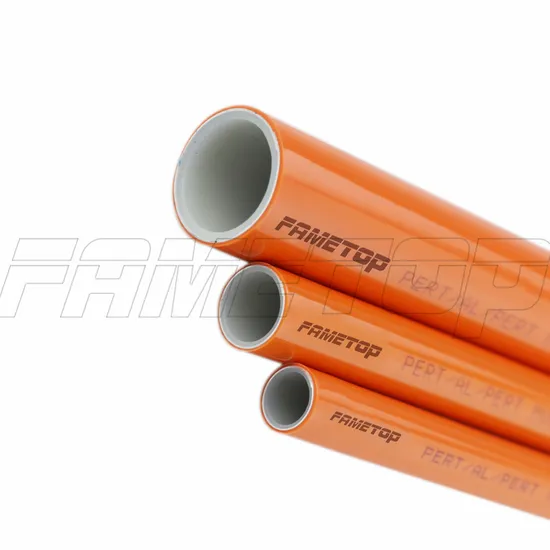

Pert/Al/Pert Multilayer Pipe for Hot Water and Heating with Ce ISO Certified

Product Description

Pert/Al/Pert Multilayer Pipe For Hot Water And Heating
Ovelap-welded or butt-welded;
Made with LG or Dows raw material
Color:White,Nature,Red or as customerized;
Standard: Confirms to DIN EN ISO 21003-2009
Max working temperature up to 95ºC,working pressure 10bars;
Packing: By kraft paper, by carton or by bag;
Coil length: 100m,200m or 200m;
Servive life: Over 50years;
APPLICAITON:
1) Hot water and cold water pipe for production and domestic use;
2) Heating pipe, pipes used for heating installation on floor and wall, snow-melting devices for buildings in northern, park, airport, and so on;
3) Pipe used for solar energy water heater;
4) Coal gas and natural gas pipe;
5) Drinking water within a certain district, pipe used for reclaimed water project;
6) Piped used for central air conditioner, fan coil;
7) Industrial pipes used for oil transportation and cooling fluid;
8) Pipes used for sleeve of wire or cable;
9) Pipe/tube used for oxygen input in hospital;
Main Characteristics:
Thermal conductivity 0.45w/(m.k.);
Coefficient of heat expansion 0.025mm/(m.k);
Bend radius ≥5D(D means outside diameter);
Oxygen-permeability:0 ;
Coefficient of heat roughness 0.0004mm;
Static-free,longevity
SPECIFICATION AND COIL INFORMATION

Norminal(mm)		14	16	18	20	25	26	32
Outer(mm)		14.0	16.0	18.0	20.0	25.0	26.0	32.0
Inner(mm)		10.0	12.0	14.0	16.0	20.0	20.0	26.0
Thickness(mm)	Wall	2.0	2.0	2.0	2.0	2.5	3.0	3.0
	Alu	0.19	0.21	0.23	0.25	0.25	0.25	0.3
Unit Weight(g/m)		100	110	120	140	210	230	310
Standard Length(m/coil)		100/200	100/200	100/200	100/200	50	50	50
CBM/Coil		0.04/0.06	0.044/0.083	0.064/0.104	0.109/0.064	0.101	0.11	0.125
Color		White/Red/Yellow/Blue/Black/or as customerized
Remarks:Aluminum thickness can be made as your requested

---
