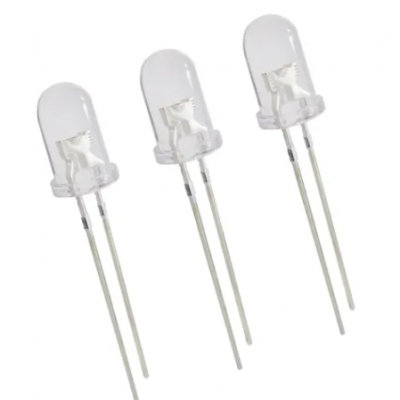

MOONLEDS DIP LED 5MM, Super bright Red Amber Green Diode
Moon LEDs has been committed to the development and production of traditional Dip LED 5mm. It can be used whereever lighting manufacturer need low power, high intensity, wide beam angle for indicator, signal, warning lights. Bright red, amber, aqua green color combination could be the best solution for the traffic lights.
Product Features
- Low power Dip LED 0.06W
- 30° angle for uniform light distribution, 20°, 40°, 60° optional
- Standard Round Head 5.0mm diameter, Long or Short Leg available
- Water clear epoxy resin
- Super high intensity performance
- Traffic lights, LED display, Indicator lamp, Signalization
Product Specification
5mm LED specification
Color
| Wavelength
(nm)
| VF
(V)
| IF
(mA)
| Luminous Intensity
(mcd)
| Viewing Angle
(Degree)
| Leg
(mm)
| Head Shape
| Lens Color
| Part Number
|
Red
| 620-630
| 1.8-2.2
| 20
| 20000-26000
| 30
| 26/28
| Round
| Water Clear
| MN-P05THR620
|
Amber
| 588-595
| 1.8-2.2
| 20
| 15000-25000
| 30
| 26/28
| Round
| Water Clear
| MN-P05THY590
|
Aqua Green
| 500-510
| 2.8-3.2
| 20
| 25000-35000
| 30
| 26/28
| Round
| Water Clear
| MN-P05THG5XX
|
>>
