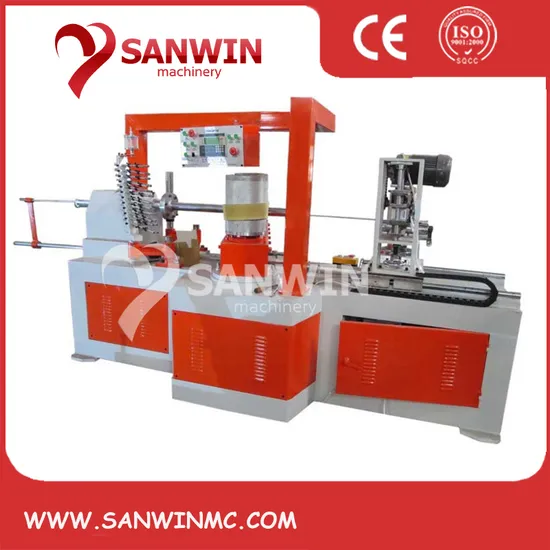

Automatic Spiral Paper Tube Core Making Winding Forming Machine

Product Description

SWJG-50 Two-heads Paper Tube Making Machine
Descriptions:
SWJG-50 Small size tube & core making machine is suitable for Toilet Paper Cores;Preservative Film Cores and other paper tubes & cores.
-- PLC controlled Automatic Paper Core Making Machine adopts Computerized Control System. All the working parameters can be setup on the controlling panel (touch screen type) .
-- Single circular blade inline cutting system with cutting range 500-5000mm.
-- All the brands of components like Motor; Inverter; PLC; Touch Screen can be customized as per your requirement.
Technical Parameter:

Technical Parameter		Control System
Paper Layer	2-10 Layers	PLC	Xinjie
Inner Diameter	20-100mm	Man-machine Interface	Touch Screen (Xinjie)
Wall Thickness	1-5mm	Inverter	5.5KW Delta (Taiwan)
Winding Speed	0-20 meters/min	Execute Components	CHNT
Winding Nose	Two noses single belt	Signal Components	Hugong
Shaft Fixing Way	Flange	Pneumatic Components	Jingwei
Cutting System	Single Circular Blade	Electric Components	CHNT
Gluing Way	Single / Double (can be chose)	Configuration
Length fixing	Infrared	Paper Reel Stand	10 Layers Cross Type
Operator	1-2 persons	Gluing System	10 Layers Spraying Type
Speed Control	By Inverter	Inner Paper Shelf	1 Set
Power Supply	380V/3Phase/50Hz (can be customized)
		Discharging Shelf	1 Set
Size		Belt	2 Pieces
Mainframe	2700*1600*1800mm	Mandrel Shaft	2 Pieces
Working Space	7500*5000mm	Belt Adjusting	Manual
Weight	1500kgs	Paper Reel Stand & Gluing Shelf Adjusting	Manual
Driving System
Main Motor	4.0KW Wannan	Automatically Gluing	Gluing Pump 1.5kw
Motor Rotating Speed	1400r/min	Lubricating Oil for Paper Tape	Automatically Supply
Nose Rotating Speed	48r/min
Nose Output Strength	3000N.m	Enclosed Spare Parts
Reduction Box	WPO135	Extra Blades	3 Pieces
Gear Box	WPO135	Useful Tool	1 Set
Driving Chain	16A*2

Sample:
Machine Photo:
- 10 Layers Spraying Glue System
-Cutting Part-servo synchronous tracking
Packaging & Shipping
Our Service :
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
if you have any query, pls tell me freely. We will try our best to satisfy with you !
Contact us:
Contact: Ms Nancy
Mobile : 0086-15868035456
Website:sanwinmachine.en.made-in-china.com
Add:Rui'an City ,Zhejiang Province,China
