Efficient Gluing Machine PVC Automatic Straight Edge Banding Machine for Woodworking Hot Sale

Product Description

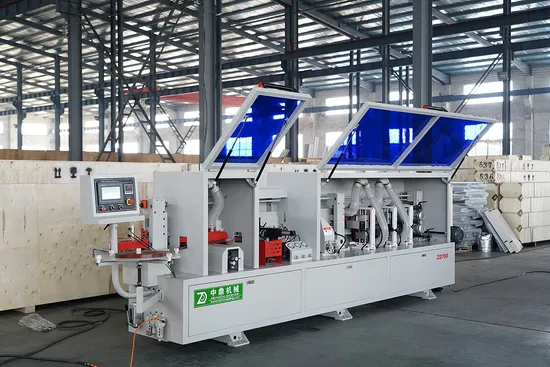

ZD700 ECONOMICAL STRAIGHT EDGE BANDING MACHINE

Details:
Pre-milling device uses double milling cutters to modify the ripple marks caused by the cutting board saw processing to achieve a better edge banding effect.
The glue pot is made of imported special ball bearing, high hardness and super wear-resistant material rubber box.
End trimming mechanism through a precise guide track movement, adopt automatic tracking and high frequency motor to ensure the cutting surface smoothly.
Rough and fine trimming adopts automatic roll forming structure and high frequency high speed motor etc. to trim and process excess edging material at the top and bottom of the sheet edge.
Upgraded scrapping mechanism with larger drive and large copy wheel to remove the wavy marks caused by the non-linear motion cutting process of trimming.
The polishing device adopts the board processed by cotton polishing wheel, by end polishing to make a smoother surface.

Specification:

working pressure	total power	feeding speed	panel thickness	panel length	panel width	edge thickness	overall size
0.7 Mpa	11.53 kw	13 m/min	10-60 mm	Min. 100 mm	Min 50 mm	0.4-3 mm	4940*900*1500 mm

PRODUCT APPLICATION
Company Introduction
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.We are committed to providing one-stop service for factory production. Relying on the favorable geographical advantages of Qingdao Industrial Park, we have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as :polishing machines ,palner machine,press machine etc,which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.Bring our products and services for more than 66 countrys people and customers. We have established 7 complete system to gurantee all process of orders with timely and effective supervision and feedback .Our company has got ISO9001 international system certificate and CE security certificate for different kinds of machines.
Our Missions:
To provide customers with quality products and services, customer satisfaction is our highest criterion
Our Values:
Bring the highest quality and best advice for customer
Commitment to deliver the best we can in an ethical and professional manner
Continuously improve product technology and services to provide more customers with one-stop equipment procurement services.

SUCCESSFUL CASES

CERTIFICATE

PAYMENT AND LOGISTICS
TOP RATED
Recent activities CIFF FWM Shanghai Exhibition September 19,2024
FAQ:
Q:How to order?
A:Ask us → come to map to customize → use the situation to inform → receive our product design recommendation → negotiate details
Festival → Confirm the sample → sign contract/deposit → batch production → goods are ready → balance/delivery → further cooperation
Q:Which transportation method is available?
A:It is a special express delivery of shipping, the China Express Mail, and the Express Express can choose other transportation methods. Please contact us. If you need another shipping route.

---
