PP PE ABS PVC Single/Double Screw Plastic Extruder for Pipe Sheet Plastic Pipe Making Machines Plastic Extruder Line

Product Description

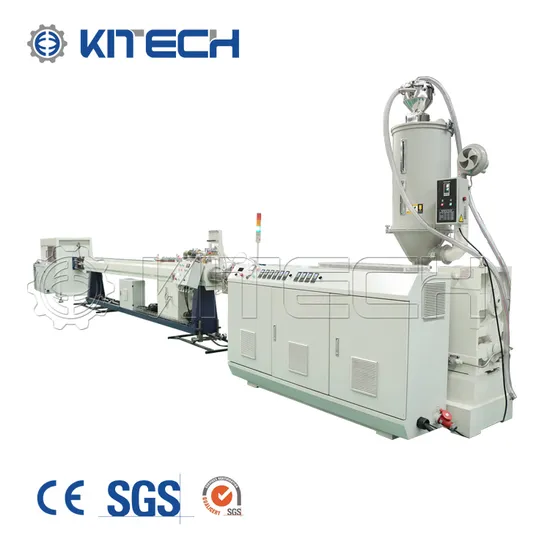

Application:PE Plastic Pipe Extrusion Line is mainly used in the production of agricultural drainage, water supply and cable conduit purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.
Great advantages: 1. High lineal extrusion speed, big capacity and low power consumption, and achieved multi-layers co-extrusion with 1-5 layers. 2. The copper bush is more wear-resisting and prevent material leakage which can guarantee a stable running of extruder.
3. Material feed via spiral groove, efficient transmission and can effectively reduce back-pressure on extruder.
4. Unique design (barrier, shearing and mixing zone) guarantees a uniformed plasticizing effect, and can reduce the pressure on the screw which guarantees a high speed and stable output capacity.
5. High torque gear box has a smart figuration, compact construction, low noise, high carrying capacity, high transmission efficiency can assure long-time trouble-free operation;6. PCA(pipe air cooling system) of die head largely increase the extrusion speed and decrease the cooling length of extrusion line, and improve quality of inner pipe surface;7. Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently;8. Chip-free cutter ensuing flat and smooth cutting surface of pipe.
Pipe Machine capacity and relevant parameters of the Pipe machines :

Diameter range(mm)	Extruder model	Max. Capacity(kg/h)	Max. lineal speed(m/min)	Extruder power(KW)
Ф20-63	ASS65/33	220	12	55
Ф20-63	ASE60/38	460	30	110
Ф20-63 Dual	ASE60/38	460	15×2	110
Ф20-110	ASS65/33	220	12	55
Ф20-110	ASE60/38	460	30	110
Ф20-160	ASE60/38	460	15	110
Ф50-250	ASE75/38	600	12	160
Ф110-450	ASE90/38	850	8	250
Ф250-630	ASE90/38	1,050	4	280
Ф500-800	ASE 120/38	1,300	2	315
Ф710-1200	ASE120/38	1,450	1	355
Ф1000-1600	ASE90/38 ASE90/38	1,900	0.6	280 280

---
