IR Tunnel Dryer

Product Details

Product Description

Product Description

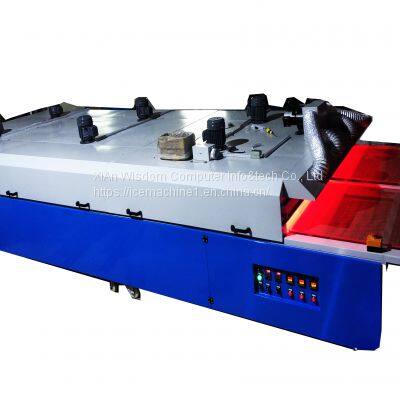

IR tunnel dryer with double split belt
LY-IR2-7000 is customized advanced IR tunnel dryer,
it is suitable for drying all kinds of items with high speed and excellent drying effect .
it with 2 conveyor belt with independent controlled speed and temperature .
PID operation, power regulator phase offset, Ensure that the infrared lamp shine smooth. No flicker
10kg tumble dryer vented Application:1.IR drying tunnel can drying all kinds of ink ( except UV ink),such as Plastisol ink, thermosetting ink,screen printing ink,pad printing ink,plastic ink,glass ink ETC.
2. It can drying variety of material ,
such as T-shirt, pants,fabric textile,plastic,matel,glass,wood,silicone Etc
Specification
1.Conveyor length :7000mm
2.Conveyor width:2000mm
3.Entry end length:1000mm,Exit end length:1500mm
4.Add additonal cooling fans in Exit end: 600mm
5.Width thermal insulating layer:100mm.
6.Working power: 380V 50HZ
7.Heat Power:30KW,Total Power:37KW(all power of machine)
8.Temperature adjustment: 0-200 Centigrade
9.Belt speed adustment: 0-10M/MIN
10.Machine size:7000*2000*1300mm(LxWxH)
11.Gross weight: 1910 KG
12.Mesh belt material:Teflon
13.Conveyor Speed adjustment is stepless(variable)
14.Three section can be open ,3 x 1500mm chambers with digital thermostat control of each chamber for variable heat control
15.Heating system is electricity (IR system is preferred)
16.Split belt can be adjustable of speed independently
17.With exhaust ducting
Description
1) Machine size：L7000 W2000 H1300mm.
2)Tunnel size: temperature zones 4.5M, Entry end length:1000mm,Exit end length:1500mm, width:2000mm.
3) There are 4 section in the tunnel, 3 temperature zones(3x1.5=4.5m),1 cooling temperature(600m)
4) Entrance and exit are installed height adjustment board, the adjustment range is 30-100MM.
5) Tunnel inside body is adopted 1.5mm galvanized sheet bending welding lateral upper oblique angle.
6) Tunnel body is made by angle iron bar production, sub-combination of design structure, easy removal and convenient installation.
7) Adjustable feet at the bottom
Working principle of air dryer:
Air drying is the removal of moisture in the air, there are two forms: adsorption and freezing. Adsorption type compressed air dryer using the principle of pressure swing adsorption, wet air through the adsorbent, water is adsorbed, get dry air; The refrigerated compressed air dryer uses the principle of cooling air and reducing the air temperature to precipitation the moisture in the wet air from the air after condensation to get dry air.
Features:
without heat regenerative air dryer is through the "pressure change "(PSA principle) to achieve the drying effect. Due to the ability to hold water vapor gas is inversely proportional to the pressure, the part of the dry air (called again angry) decompression expansion to atmospheric pressure, the pressure change make expanding gas more dry, then let it flow through to regeneration of desiccant layer (i.e., have to absorb enough water vapor drying tower), the water in the dry gas sucked out desiccant, Take it out of the dryer to achieve the purpose of dehumidification. The two towers work in cycle, without heat source, and provide dry gas to the user's gas system continuously. For chemical, light industry, telecommunications, petroleum, textile and other industries of pneumatic control, pneumatic instruments, pneumatic components and industrial gas supply of dry compressed air source, with small size, simple process, investment, easy to use and maintenance, automatic control, energy saving and so on
Process of air dryer:
without heat regenerative air dryer is a kind of unit equipment, but it must be matched with air compressor, cooler, buffer tank and other equipment into the air purification system, the process is as follows:
The compressor compressed air to the cooler, the temperature fell to 40 ℃ or less, again into the buffer tank, degreaser, from the inlet on the dryer cut-off valve IA or IB) into the column A (or B) for temperature in addition to dry, then from the upper part of the check valve CA (CB) output, of which about 85% of the dry air as A finished product after dust filter input air tank, For user use. About 15% of the dry air passes through the re-gas limit valve D on the dryer and enters the drying tower B(or A), which is used as the B tower (or A tower) to regenerate the gas, and the wet air after regeneration is discharged into the atmosphere by the exhaust cut-off valve RB(or RA) through the muffler.
Equipment work for 10 minutes, regeneration cycle regeneration process for 4 minutes, electric control signals, the pressure is mounting on tower B (A), in 4 minutes 5 seconds, tower B (or A tower) ino, make the tower B (or A tower) of pressure to work pressure value, in exchange, the two tower pressure balance; At 5 minutes, the electric control box sends out A signal to close the intake shut-off valve IA(or IB) and open the exhaust shut-off valve RA(or RB), and tower A(or tower B) begins to enter the regeneration stage, so that the repeated circulation continuously sends out dry air, and the dryer itself is also continuously regenerated.
