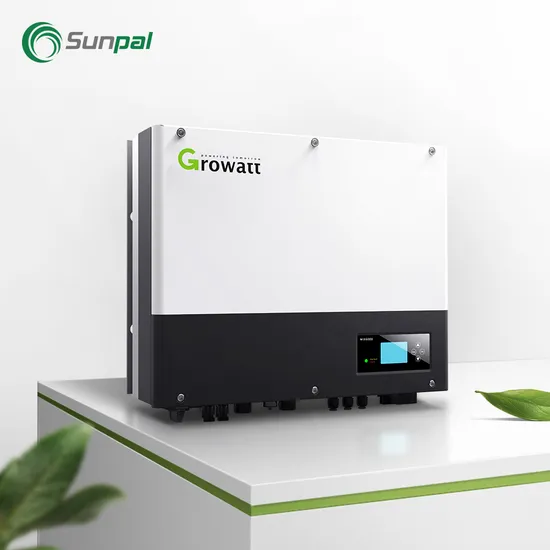

| Datasheet | SPH 3000 | SPH 3600 | SPH 4000 | SPH 4600 | SPH 5000 | SPH 6000 |
| DC input data | ||||||
| Max. recommended PV power | 6600W | 6600W | 6600W | 8000W | 8000W | 8000W |
| Start voltage | 150V | |||||
| Max. PV voltage | 550V | |||||
| PV voltage range | 120V-550V | |||||
| MPPT voltage range/nominal voltage | 150V-550V /360V | |||||
| Max. input current of tracker A/B | 12A/12A | |||||
| Number of MPP trackers / strings per MPP tracker | 2/1 | |||||
| AC Output | ||||||
| Rated AC output power | 3000W | 3680W | 4000W | 4600W | 4999W | 6000W |
| Max. AC apparent power | 3000VA | 3680VA | 4000VA | 4600VA | 5000VA | 6000VA |
| Max. output current | 16A | 16A | 22A | 22A | 22A | 27A |
| Nominal AC output voltage | 230V | |||||
| Nominal grid frequency | 50/60Hz, ±5Hz | |||||
| Power factor at rated power | 1 | |||||
| Displacement power factor | 0.8leading…0.8lagging | |||||
| THDI | <3% | |||||
| AC output power(Backup) | ||||||
| Max. output power | 3000W | |||||
| Rated AC output voltage | 230Vac | |||||
| Rated AC output frequency | 50/60Hz | |||||
| Automatic switchover time | <0.5S | |||||
| Battery data | ||||||
| Battery voltage range | 42~59V | |||||
| Max. charging voltage | 58V | |||||
| Max charging and discharging current | 66A | |||||
| Max charging and discharging power | 3000W | |||||
| Battery type | Lithium /Lead-acid | |||||
| Capacity of battery | 50-2000AH | |||||
| Efficiency | ||||||
| Max. efficiency | 97.5% | 97.5% | 97.5% | 97.6% | 97.6% | 97.7% |
| Euro European efficiency | 97.0% | 97.0% | 97.0% | 97.1% | 97.1% | 97.1% |
| MPPT efficiency | 99.9% | |||||
| Protection devices | ||||||
| DC switch | Yes | |||||
| DC reverse polarity protection | Yes | |||||
| Battery reverse protection | Yes | |||||
| Output over current protection | Yes | |||||
| Output over voltage protection | Yes | |||||
| Ground fault monitoring | Yes | |||||
| Grid monitoring | Yes | |||||
| Integrated all-pole sensitive leakage | Yes | |||||
| General Data | ||||||
| Dimensions (W / H / D) | 450/560/180mm | |||||
| Weight | 27kg | |||||
| Operating temperature range | -25°C ... +60°C | |||||
| Altitude | 2000m | |||||
| Self-Consumption | < 3 W | |||||
| Topology(solar) | Transformerless | |||||
| Topology(battery) | HF transformer | |||||
| Cooling concept | Natural | |||||
| Environmental Protection Rating | IP65 | |||||
| Relative humidity | 100% | |||||
| DC connection | MC4/H4(Optional) | |||||
| AC connection | Connector | |||||
| Interfaces: RS232/RS485/CAN/USB | Yes | |||||
| Monitor : RF/WIFI/GPRS | Optional | |||||
| Display | LCD+LED | |||||
| Warranty: 5 years / 10 years | Yes /Optional | |||||
