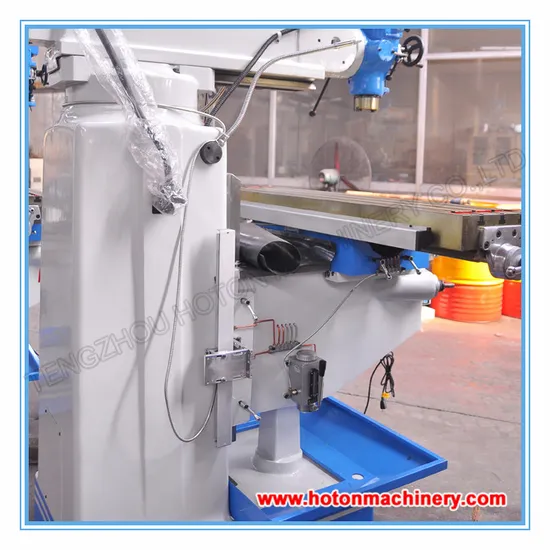

Universal Vertical Turret Drilling Milling Machine(X6325A X6325B X6325C X6325D)

Product Description

TURRET MILLING MACHINE FEATURES:
Feature of X6323
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
Feature of X6325:
Rectangular guide way on Y-axis and Z-axis is feature a good rigidety
The guide way on saddle is lined with TF wearable material
The worktable surface and 3 axis guide way are hardened and precision ground
Feature of X6325D:
Rectangular guide way is adopted both on Y and Z axis.
The guide way on saddle is lined with TF wearable material. Which makes the machine stably and rigidly, also makes it beautiful and easy to operate.
5HP milling head motor and quill diameter is 100MM
Feature of X6333
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
Feature of X6330A
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
SPECIFICATIONS:

MODEL	X6323A	X6325	X6325D	X6333	X6330A
Table size	230*1067 230*1246	254*1270 254*1370	254*1270 254*1370	330*1370 330*1500	305*1370 305*1500
Long travel(mm)	650 840	850 950	850 950	840 1000	870 1000
Cross travel(mm)	305	420	420	368	380
Vertical travel(mm)	350	420	420	450	430
T-slot No.and size(mm)	3x16
Ram travel(mm)	315	470	470	500	500
Distance from spindle nose to table surface(mm)	0-350	0-405	0-405	0-450	0-350
Spindle hole taper	Standard:R8	standard:ISO40
Spindle travel(mm)	127
Spindle speed(r.p.m)	standard: shift grade 16, 50HZ 65-4500,60HZ80-5440
	optional:variable:60-4200
Auto.quill feed	Three steps:0.04/0.08/0.15mm/revolution
Spindle motor	2.25kw/3hp	2.25kw/3hp	3.75kw/5hp	3.75kw/5hp	3.75kw/5hp
Head swivel	90°
Head tilting	45°			Fix
Dimension of package	1400x 1476x2030	1516x 1550x2080	1516x 1550x2080	1800x 2016x2180	1566x 1650x2080
G.W/set	1100	1550	1590	2300	1750

Contact Us:

Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com

Company Profile:

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills.

---
