Hybrid Cable/Multicore Cable/Multipair Cable/Power & DMX Combination Cable/Composite Cable/Fire Alarm Cable

Product Description

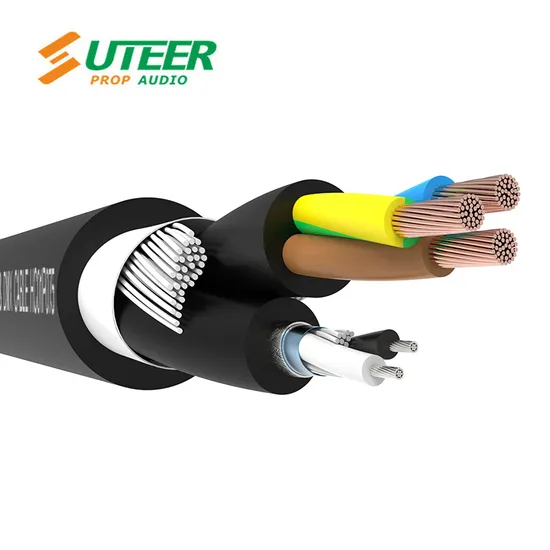

Application: Hybrid cable consist of one or two shielded DMX cable and a 3 x 0.75 mm2 or 3 x 1.5 mm 2 or 3 x 2.5 mm2 power cable. Power cores with a separatelly jacket. Operational ranges are e.g. lighting system.
Suitable for parallel power transmission and DMX signal, splicing with e.g. power and 3-pin XLR connectors.
Features: DMX cable: 2 x0.23mm² (24 AWG) Stranded Oxygen-free copper (OFC) H05VV-F 3G0.75 power cable Ultra flexible PVC outer jacket 16.5mm (Ø) outer diameter Specifications:

Cable model	HC01P075	HC01P15	HC01P25
Hybrid Cable
Twisting	1 DMX cable + 1 power cable + tracers	1 DMX cable + 1 power cable + tracers	1 DMX cable + 1 power cable + tracers
Taping	Textile fleece	Textile fleece	Textile fleece
Outer jacket	PVC,black,Ø16.5	PVC,black,Ø17.5	PVC,black,Ø20
DMX Cable
Conductor material	Bare stranded copper	Bare stranded copper	Bare stranded copper
Structure of conductor	20 x 0.12mm	20 x 0.12mm	20 x 0.12mm
Conductor section	0.23 mm2	0.23 mm2	0.23 mm2
American wire gauge	24 AWG	24 AWG	24 AWG
Insulation material	PE	PE	PE
Number of cores	2	2	2
Insulation colours	Red / Blue	Red / Blue	Red / Blue
Conductor twisting	Yes	Yes	Yes
Shielding 1	AL/PET-foil	AL/PET-foil	AL/PET-foil
Shielding 2	16 x 6 x 0.12mm TC - Braided	16 x 6 x 0.12mm TC - Braided	16 x 6 x 0.12mm TC - Braided
Filling	Cotton yarn	Cotton yarn	Cotton yarn
Separator	None	None	None
Outer jacket	Flexible PVC	Flexible PVC	Flexible PVC
Outer jacket color	Black matt	Black matt	Black matt
Outer jacket dimension	Ø6.0 mm	Ø6.0 mm	Ø6.0 mm
Conductor resistance-100M	≤ 7.9 ohm	≤ 7.9 ohm	≤ 7.9 ohm
Capacity (C/C) @ 1kHz	47 pF/m	47 pF/m	47 pF/m
Characteristic impedance	110 ohm	110 ohm	110 ohm
Power Cable
Conductor material	Bare stranded copper	Bare stranded copper	Bare stranded copper
Structure of conductor	24 x 0.2mm	48 x 0.2mm	49 x 0.25mm
Conductor section	0.75 mm2	1.5 mm2	2.5 mm2
Insulation material	PVC	PVC	PVC
Number of cores	3	3	3
Jacket	PVC,Black,Ø6.8	PVC,Black,Ø8	PVC,Black,Ø10.5
Mechanical characteristics
Temperature range	fixed installation		-25 °C to +80 °C
	flexible installation		-20 °C to +70 °C
Bending radius	fixed installation		10 x outer diameter
	flexible installation		12 x outer diameter

---
