High Quality and Low Price Aluminum Profile Single Head Any Angle Cutting Saw Aluminium Window Door Machine

Product Description

Product Description
Specification:

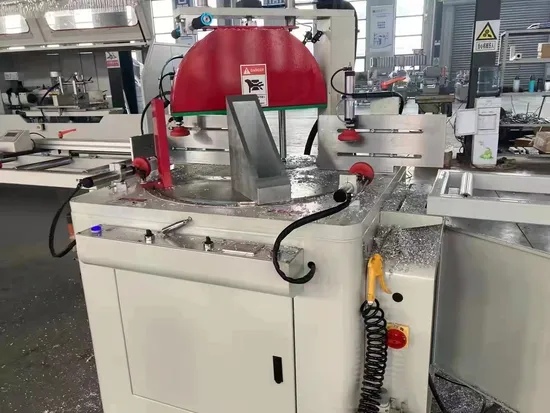

Used for curtain wall and window of aluminum accurate cutting, also for UPVC profile. Single head any angle cutting saw with the carbide saw blade, which make sure the high speed and accurate cutting. This machine can be installed the size positioning frame, also can added the digital display device according to your requirement, thus can make the locating size more accurate. The workbench rotating between the 20° ~135°. With cooling system for cooling blade. Technical Parameter:

Power supply	380V 50Hz,three phase
motor power	3.0Kw
air pressure	0.6~0.8MPa
air consumption	10L/min
motor rotation speed	2840r/min
Blade feeding speed	stepless timing 0~3m/min
cutting angle	20° ~135°
Cutting profile surface plane	≤0.3mm
Cutting angle tolerance	≤0.05°
Cutting width*height	190x190mm
saw blade specification	Φ600mm×φ30mm Z=144
Overall dimension	8200×1400×1550mm(L×W×H)
Weight	900Kg

Certifications

Company Profile

Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.


Machine at old customer


Packaging & Shipping

---
