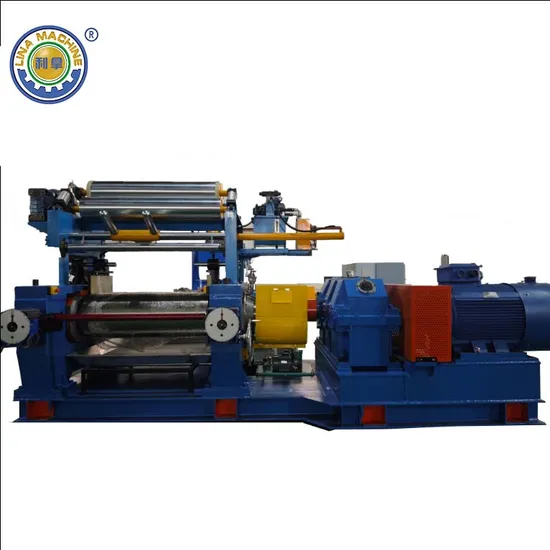

18 Inch Fctory Price Rubber Compounds Two Roll Open Mixing Mill

US$25,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.

LN-K-450/18

Control Type

PLC

Automatic Grade

Semi-Automatic

Power Source

Electric

Type

Open Mixing Mill

Roll Material

Vanadium Titanium Alloy Cold Hardening Cast Iron

Roll Surface Treatment

Hard Chrome Plated

Motor Power

110kw

Mixing Materials

Rubber and Plastic

Roll Pitch Adjustment

Motorized or Hydraulic or Manual

Transport Package

Plasitc Film Coated

Trademark

LINA MACHINERY

Origin

Dongguan

HS Code

8420100090

Production Capacity

20 Sets Per Month

Packaging & Delivery

Package Size

510.00cm * 190.00cm * 190.00cm

Package Gross Weight

10000.000kg

Product Description

Working principle of open mill: In the mixing process, the open mixing mill is mainly dependent on the relative rotation of the two rollers to the extrusion and cutting of the material. After repeated kneading and chemical action with the process, it finally achieves the purpose of mixing through the interrupting of the molecular chain of material internal and mixing all the ingredients in the recipe evenly.
Machine application:
Suitable for blending, dispersing, shearing, plasticizing, cooling, and laminating polymer materials such as rubber and plastics.
General technical specifications for references:

Model	LN-K-300/12	LN-K-360/14	LN-K-400/16	LN-K-450/18	LN-K-550/22	LN-K-560/24
Rollers diameter (mm)	300	360	400	450	550	560
Rollers length (mm)	700	900	1000	1200	1500	1530
Speed ratio	1:1.3	1:1.28	1:1.28	1:1.3	1:1.35	1:1.3
Maximum roller distance (mm)	10	10	10	12	16	15
Motor power (KW)	22	37	45	55	90/110	160
Machine weight (kg)	3500	6500	7000	10000	19500	22000
Dimensions (mm)	3000x1450x1600	3700x1700x1700	3800x1700x1800	5100x1900x1900	6200x1900x2200	6650x2740x2250

Features and advantages: Rollers material: the roller is made of high-quality carbon steel by nitriding treatment. The German machine tool makes the center height, its thickness is uniform, the control is precise, the surface is plated with hard chrome, the bearing capacity is strong, and the service life is long. Roller bearings, and lubrication: Bearing-type double-arranged ZWZ bearings, self-adjusting, and integrated lubrication system, easy to maintain, greatly improve equipment life. Safety design: ergonomic multi-directional brakes, emergencies, convenient and timely touch according to the natural reaction of human body, infrared safety switch. Safety switch: the machine adopts 360 degree non-dead safety dial switch in multiple directions, and the safety protection is good. Safety protection: The whole body adopts all-round wrapping for all transmission parts, and a new curved safety cover is adopted at the roller to isolate the operation danger. Transmission system safety: the machine adopts electronic brake, lotus coupling, single-axis output system, large torque, stable transmission, safe device convenient machine 1/2 second quick stop, and outward reversal function (circle speed adjustable), reaction Speed is the industry leader. Temperature control system: temperature control, automatic temperature control, integrated waterway cooling in place and protection to reduce pollution from circulating water sources. And the use of high temperature rotary joints, long service life and good sealing effect. FAQ Q1:Where is your factory factory?
A1:Guangdong Lina Industrial Co. Ltd. is located in Dongguan City, China.
Q2:What kind of machinery and equipment does your company focus on?
A2:We foucs on rubber&plastic machine.The core products include mixers, open mixers and granulation production lines.
Q3:How do you ensure the quality of your factory's production?
A3:We have senior assemebly and technical team to produce high-level machinery productions.
Q4:What about your after-sales service?
A4:We have experienced overseas service technical engineers who can help you install your machines and support the training of your workers.
Q5:What is your delivery time?
A5:Delivery time depends on the user's choice, usually within 60 days
Q6:How long is your warranty period?
A6:One year.
If you have any further questions, please contact us.
