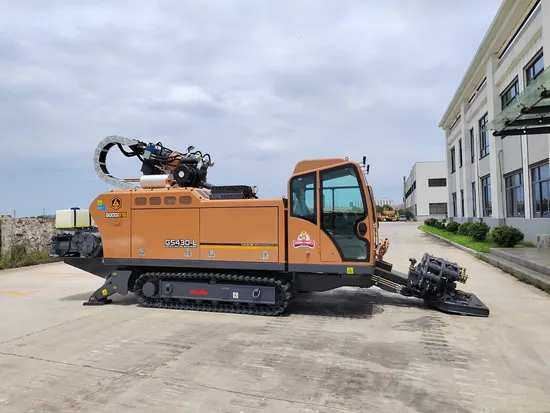

GS430-LS horizontal directional drilling rig

Product Description

Product Parameters

Main Technical Parameter
Rig Weight	13000kg	Dimension(L×W×H)	7300×2250×2270mm
Max. Thrust & Pullback Force	430/860kN	Max. Thrust & Pullback Speed	53m/min
Max. Torque	19000N·m	Max. Rotation Speed	185r/min
Engine Power	179kW	Max. Mud Pump Flow	450L/min
Crawling Speed	3-5km/h	Max. Mud Pressure	8MPa
Entry Angle	12°-25°	Max. Climbing Gradient	18°
Max. Back-reaming Diameter	Ф1350mm(soil depended)	Max. Crossing Length	650m(soil depended)
Drill Rod Size	Ф83×3000mm

Product Description
1. Close-circuit system is adopted for rotation system; automatic variable system is adopted for push & pull, clamping and walking and it is under load-sensitive control. Advanced hydraulic system raises more than 20% productivity, reduces about 50% heat, and saves more than 20% energy compared to traditional one.
2. The machine is equipped with Cummins engine, with high efficiency, large power, low fuel consumption, low noise, and strong ability in construction.
3. Four bar linkage luffing structure is adopted for main girder, which highly increases entry angle range and ensures the large angle and rig tracks are not off ground, having improved the safety performance.
4. Wire-control walking system can ensure the safety when the machine performs walk, transfer and load & unload.
5. The machine is equipped with φ83×3000mm, and the machine body occupies a moderate area, meeting the requirement for high efficiency construction in small place.
6. Main hydraulic components are from the international first-class hydraulic component manufacturer, which greatly improve the reliability of the product performance and safety.
7. Electric design is reasonable with low failure rate, which is easy for maintenance.
8. The steel track with rubber plate is adopted for crawler, which can not only bear high load, but also satisfy walking on different roads.
9. Rack and pinion system is adopted for thrust &pullback, which is good for high efficiency, long life, stable working and convenient maintenance.Detailed Photos
CertificationsCompany Profile
"Goodeng Machine" was established in May 2002, is a national high-tech enterprise engaged in R&D, production, sales and service of trenchless machinery, piling machinery, mining machinery, the main products are GS series of horizontal directional drilling machine, GPY series of static pile driver, GM series of surface drilling machine and accessories. In 2012, "Goodeng Machine" was identified as "National High-tech Enterprise", and successfully got the acceptance and achievement appraisal of the project named "Research on Key Technologies and Product Development of Heavy-duty intelligent trenchless directional drilling rig". The company R&D center was recognized as China Machine Engineering Technology Research Center, many products have obtained the mechanical industry science and technology progress awards from national and provincial government. In 2018, "GOODENG" won the "China Well-known Trademark". In 2022, the company was in the directory of listing cultivation plan for Jiangsu Technology Enterprise. The first "Goodeng Machine" overseas manufacturing base broke ground in Thailand in the same year, covering an area of nearly 80000 m². The company also has two manufacturing bases in China, covering an area of more than 150000 m², with more than 500 employees, a number of modern intelligent production lines, which can provide 3,000 sets various types of machinery per year. "Goodeng Machine" products are sold all over the country, and also exported to nearly 30 countries and regions in Asia, Europe, Australia, South America and Africa. "Goodeng Machine" realizes resource sharing and creates greater value for customers through the gradually expanding global marketing branch. Our AdvantagesWe have more than 10 offices and branches in overseas markets. We have factories in Thailand and branches in India and Malaysia. We also have our own overseas after-sales service employees. After our training, they have excellent skills and are ready to provide you with support

---
