Computer Slitter Scorer Machine for Corrugated Paper Board Production Line

Product Description

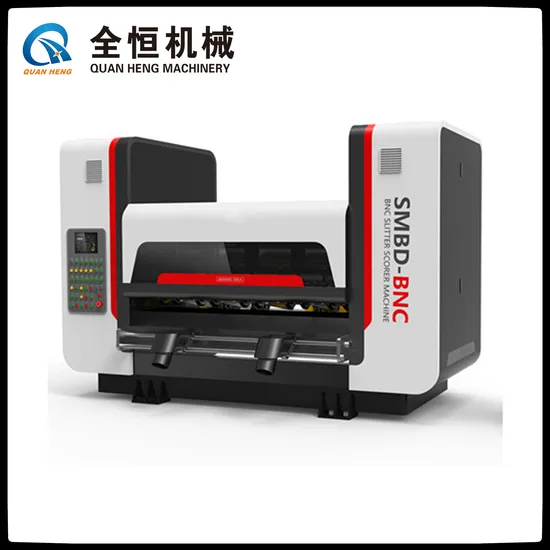

Slitter Scorer Machine for Corrugated Board Line
Product Description 1.High quality touch screen and PLC equipped composing the CNC system,connect to the production line.
2.High quality beeline rail and high-precision screw conveying guarantees the precision.
3. A memory of orders,realize non-stop automatic or manual change.
4.Speed synchronizes with board speed.Standard communication interface,easy to link with management system.
5.Alloyed steel thin-blades,sharp and long life of over 8 million meters,auto sharpening
6.The knife for computer control automatic or manual knife sharpening,edge trimming knife,improve production efficiency.
7.Three types of scorers:convex to concave(three lines).convex to concave(five lines),convex to flat.
8.Two rows of scorers,realizes minimum scorer spacing is 0mm.
9.Computer control score-depth,high quality scorer,more steady .
10.Using the synchronous belt transmission ,low noise,prolong using time.
11.Standard motorized body left-right rectification system 200mm

width	1800mm	2200mm	2500mm
speed	150,200,250m/min
Blade&scorer	5&8,6&10,7&12
Order change	1-3s(servo type)
precision	±0.5mm
Min.slitting	135mm
Min.scorer	0mm
Correction range	200mm
power	25kw	30kw	35kw
machine size	3900*1800*2450 (mm)	4300*1800*2450(mm)	4500*1800*2450(mm)

Detailed Photos Slitter and scorer independent moto control ,realize fast change.
Change order within 1-3s(servo type)3-8s(invert type).precise(±0.5mm)
Two rows of scorers,realizes minimum scorer spacing is 0mm.Three type of scorers,convex to concave (three lines),convex to concave(five lines),convex to flat.
Precised gapless synchronous transmission belt,precious encoder monitoring.
Famous brand in the world electric elements.Application of two machine together can also realize non-stop order change.
Company Profile
Packaging & Shipping
FAQ Q:Are you manufacture or trading company?A:we are manufacture , our factory set up on 1999, and before we exported our products are mainly supply to the trading company ,so we are the source factory, welcome to be our agency.Q:Do you inspect the finished products?A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .Q:Does the packing strong?A:Yes, of course! All of our export packing with strong wooden tray, all to meet the export packaging standards.Q:How about after-sales service process?A:When your machine has problem, contact our sales and we will solve your problem as soon as possible.We have after-sale office in China, Vietnam, India, Bangladesh, Italy. Q.Where is your factory?A:Our factory located in Development Zone, East Of DongGuang County, CangZhou City, Hebei Province,China,welcome to visit our factory!Q. Do you have Import & export right?A:Yes , we have , so we can export the carton machines to you directly , without any trading company agency

---
