Cost Effective Semi Automatic Plastic Bottle Blow Molding Machine with Experienced Engineers and Comprehensive Service

Product Description

Products Description

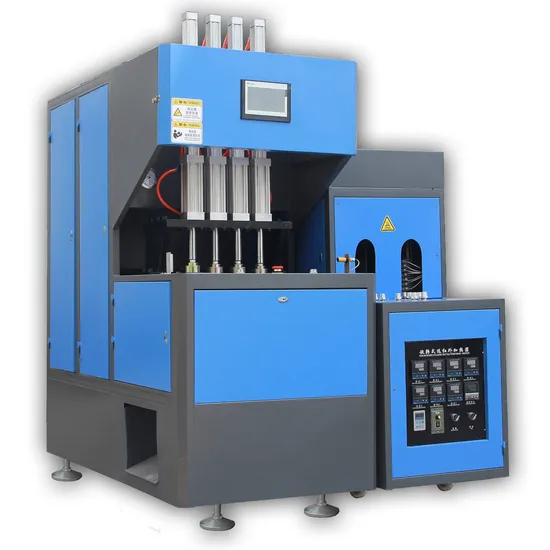

Semi-automatic PET Bottle Making Machine
The semi-automatic PET bottle making machine is affordable and has a manual operating system that requires manual labor and can produce 70-2000 5l, 10l, 20l bottles per hour. It is an ideal choice for the production of chemical, fruit juice, mineral water, and edible oil bottles in the beverage and chemical industries.
Features 1.The PET preforms are placed at a specific distance, and the heating tube has an accurately set height for maximum performance.
2.The semi-automatic blowing machine has twin startup switches on either side of the machine for emergency stops.
3.The temperature control unit is independent to deal with the heating capacity and requirement of each zone.
4.The LED display makes it easier for the operator to control and adjust the values.
5.The heating lamp is adjusted perfectly, so each preform receives the required heat uniformly.

Product Paramenters

Model	unit	MW-2000	MW-3000	WM-10L	MW-2000-4	WM-5G
Clamping Force	T	16	20	25	16	30
Container Volume	L	2 cav.:0.1-2.0 1 cav.:2.0-3.0	2 cav.:0.1-3.0 1 cav.:3.0-6.0	2 cav.:0.1-5.0 1 cav.:5.0-10.0	4cav.:0.1-1.5	10-25 (3-5Gallon)
Neck Diameter Range	mm	10-60	10-120	10-120	18-38	65
Container Diameter	mm	120	220	320	120	330
Container Height	mm	380	450	450	380	550
Clamping Stoke	mm	230	330	330	330	330
Max.Stretching Stroke	mm	160	340	440	440	450
Number of Cavities	cavity	1-2	1-2	1-2	4	1-2
Theoretical Output	bph	800-1000	700-900	500-700	1500-2000	70-120
Voltage Standard	V/PH/Hz	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50
Tolal Power(Full Loaded)	kw	10-15	12-17	15-20	15-20	60
Blow Molding Machine	cm	200×65×180	220×75×180	230×65×180	220×85×180	200×80×210
Pre-heater	cm	185×70×145	195×70×145	205×70×145	205×70×145	280×70×160
Net Weight	T	0.8	1.0	1.2	1.4	1.5

Any more questions, pls feel free to contact me !
Packing and Shipping
Packaging: Stable wooden packaging protects the machine from impact and damage. A wrapped plastic film protects the machine from moisture and corrosion. This is a fumigation-free package that supports smooth customs clearance. Large machines are fixed in containers without packaging.
Shipping: At LCL, we worked with a reliable logistics team to get the machine to the port quickly and safely. At FCL, we obtain containers, and our skilled workers carefully load the containers. As for forwarders, we have professional and long-term cooperation forwarders who can process your shipments smoothly. We also want to achieve seamless cooperation with forwarders at your convenience.
Company Profile
We are a distinguished equipment manufacturer specializing in the production of stretch/extrusion blow moulding machines and injection moulding machines, providing one-stop solutions that encompass design, production, and sales. Our machines are suitable for producing various plastic bottles with capacities ranging from 5ml to 40L, using PET, PP, and PE plastics. The produced bottles are widely used in industries such as drinking water, beverages, dairy products, household and personal care, chemicals, and medical products.
With nearly 20 years of experience in blow moulding machines and moulds, we have earned widespread support and praise from domestic and international customers for our high-quality products, reliable performance, and excellent value. Our team of over 10 senior engineers, specializing in blow moulding machines and mould design, has significantly contributed to equipment upgrades, innovations, and the development of new products. We hold full CE, ISO, and SGS certifications.
Certifications
FAQ
1.Q:Are you a factory or trading company? Where is your factory located? A: We are a factory,it is located in Huangyan,Taizhou city, Zhejiang Province, China.
2.Q:How about quality control in your factory? A: " Quality is the key point, do what customers needs."In the future, Maiwei will move towards more professional and deeper technical goals.
3.Q.What is your payment and delivery time? A:"The payment is 30% by T/T as down payment,70% by T/T before shipment.And the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 3-4 months.
4.Q.Do you provide any spare parts with the machine? A: Yes, MAIWEI will provide one set of standard spare parts to customers.
5.Q. What about the after-service? A:We offer over-all after sale service to meet customer's commandincluding on-line consulting and off line technical support.

---
