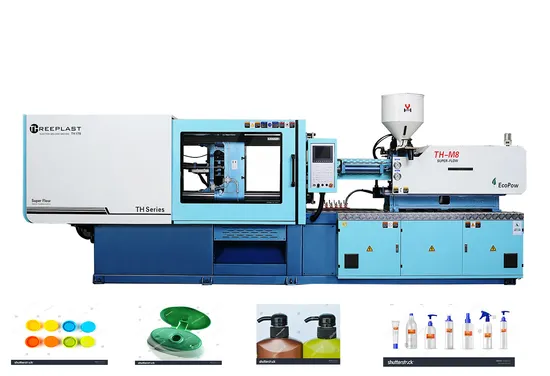

Servo Energy Saving Plastic Cap / Pet Preform Injection Moulding Machine Factory

Product Description

Characteristics
This Servo drive machine is designed For your Universal Processing applications this series of machinery is fast ,accurate and has Excellent Repeatability .This THREEPLAST injection molding machine can help you reach a maximum producibility on a wide range of materials . with a Nitrided +Alloy screw & barrel . wear-resistant screw tip. High strength tie-bars and rigid platens . it all adds up to a unit ,that will stay the course ,giving consistently high quality and output with a wide range of materials and with the most complex of molds .

Inovance Servo Driver Smitomo Servo Pump Phase Servo Motor

TH160PET
Injection Unit		A	B	C
Screw Diameter	In	1.65	1.77	1.97
	mm	42	45	50
Screw L/D ration	L/D	22	20	18.5
Shot volume	in3	19.03	21.84	26.96
	Cm3	312	358	442
Shot weight (PS)	g	284	326	402
	oz	10.02	11.50	14.18
Injection Pressure	psi	29435	25665	20735
	Mpa	203	177	143
Max screw speed	rpm	200
Clamping Unit
Clamping Force	KN / T	1700 / 170
	U.S.ton	187
Opening stroke	In	17.13
	mm	435
Tie-bars distance	In	18.30 X 18.30
	mm	465 X 465
Max.mold height	In	21.65
	mm	550
Min.mold height	In	7.87
	mm	200
Ejector Stroke	In	5.31
	mm	135
Ejector force	KN	46
	U.S. ton	5.06
General
Pump power	Kw	22
	HP	29.48
Heating capacity	Kw	9.9
	HP	13.27
Oil tank Capacity	Litre	300
Machine Dimensions	In	200.79 X 55.12 X 86.61
	m	5.10 X 1.40 X 2.20
Machine weight	Kg	5300
	Lbs	11660
