| US$15,000.00-30,000.00 | 1 SET (MOQ) |

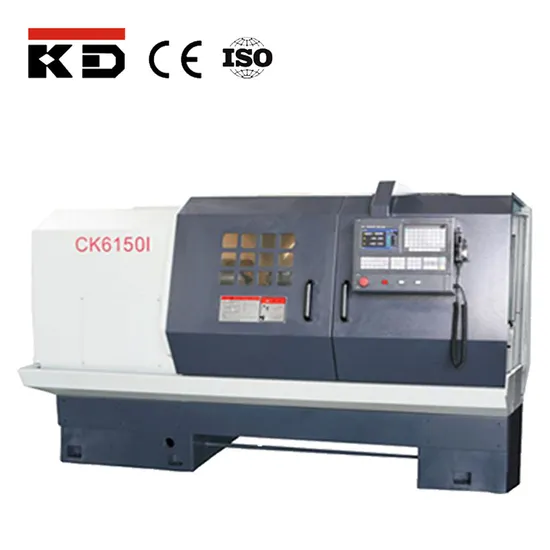

ITEMS | CK6150I |
Max. swing over bed | Ø500mm |
Max. swing over carriage | Ø300mm |
Width of bed | 405mm |
Maximum turned length | 750/1000/1500/2000/3000mm |
Max. turning length | 550/800/1300/1800/2800mm |
Spindle nose | A2-8 |
Spindle bore | Ø80mm |
Cone hole diameter and taper of spindle hole | MT.No7 |
Steps of spindle speed(Manual) | 3(Variable Within Each Step) |
Range of spindle speed | 24~240 70~710 220~2200 rpm |
Rapid feed for Axis X | 10m/min |
Rapid feed for Axis Z | 12m/min |
Max. travel of Axis X | 320mm |
Max. travel of Axis Z | 650/900/1400/1900/2900mm |
Min. input | 0.001mm |
Tool post stations | 4-ways |
Tool cross section | 32×32 mm |
External diameter | Ø75mm |
Taper of bore | MT.No.5 |
Max. Traverse | 150mm |
X/Z motor torque | 7.5/10Nm(750~2000) 7.5/22Nm(3000) |
Power of main motor | 7.5 KW |
Power of cooling pump | 125W |
Overall dimensions(L×W×H) | 2250/2500/3000/3500×1500×1600 |
Net weight | 2700/3000/3500/4000/4600kg |
