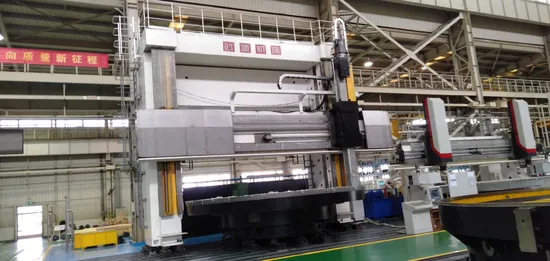

Ckx5240 CNC Double Column Vertical Milling and Turning Machine

Product Description

Product Description
APPLICATION
The machine is suitable for processing materials such as different ferrous metal, non-ferrous metals, non-metal, etc.lt can carry out turning of inner/exterior cylinder surface, conical surface, end-face, rotary curved face, thread, inner and exterior groove as well as constant speed cutting. With certain attachment head adopted, the machine can also carry out milling, boring, drilling, tapping, counter boring, etc. The machine is mainly applied in large sized rotary part machining for industries such as metallurgy, mining, energy, power, ship-building, transportation, etc.
The main performance characteristics:
Table adopts high accuracy double row roller bearing in radial for centering; in axial pump per pocket hydrostatic guide way of constant flow s adopted for supporting. Main drive adopts wide field magnet DC motor; 2-step mechanic gearbox speed change. Milling and turning table can adopt double AC spindle motor drive; can realize high precision electric gap elimination. Toolhead moves on crossrail, load relief beam is adopted to reduce the ben ding of crossrail guide way and improve travel accuracy. Toolhead ram travel adopts ballscrew pair transmission; guide way adopts pump per pocket closed type hydrostatic guide way of constant flow. Milling spindle is housed in toolhead; AC spindle motor drive; 2-shift gearbox speed change. X/Z can adopt optical scale for full closed loop inspection. In table center of turning machine adopts encoder for constant speed cutting and thread turning. In table center of milling and turning machine adopts high precision radial grating for full closed loop inspection. Product Parameters

Item	Unit	Model
		CK/CKX5235	CK/CKX5240	CK/CKX5250	CK/CKX5263		CK/CKX5280	CK/CKX52100		CK/CKX52125
Max turning diameter	mm	Φ3500	Φ4000	Φ5000	Φ6300	Φ8000		Φ10000	Φ12500
Max turning height	mm	2500	2500	2500/4000	4000/5000	4000/7000		5000/7000	5000/7000
Table diameter	mm	Φ3150	Φ3600	Φ4500	Φ5700	Φ6300/7200		Φ7200/8000	Φ8000/10000
Table loading capacity	t	40	40/50	50/63	63/100	100/160/250		160/250/400	250/400/500
Highest table turning speed	r/min	63	63/40	40	31.5	25/15.5		15.5	15.5/12
Max table torque	kN.m	63/80	63/80/125	125/160	160/315	315/400/530		530/630	630/750
Ram section size	mm2	250	250	250/300	300/320	320/400		400/500	400/500
Max ram travel	mm	1500	1500	1600/2000	2000/2500	2500/3150		2500/3150/4000	2500/3150/4000
Milling spindle power	kW	25/31	25/31	25/31	31	31/44		31/44	31/44
Milling spindle max torque	N.m	750/900	750/900	750/1000	1000	1000		1200/2000	1200/2000
Milling spindle highest speed	r/min	2000	2000	2000	2000	2000/1500		1200/1500	1200/1500
Turning main motor power	kW	60/62	60/62	74/81	81/125	125		143	143/166
