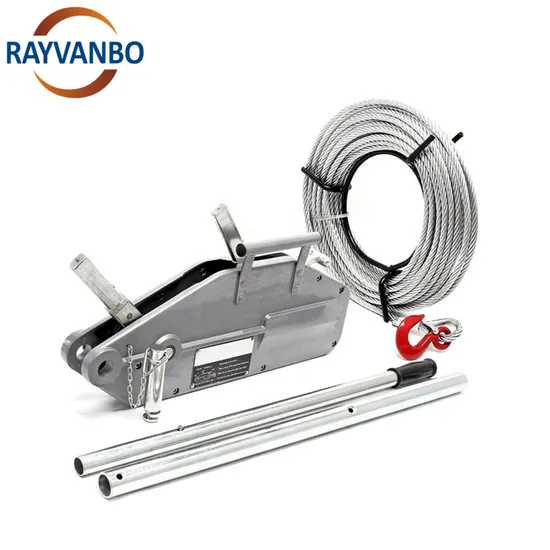

Wire Rope Tirfor Tx 0.8 1.6 3.2 5.4 T Pulling Hoist Winch Wire Rope Reliable Construction Lever Hoist

Product Description

Product Description
It is a new and compact small size manual lifting tool. Light weight and firmed structure, widely used, convenient maintenance. The most attractive feature is suit for outside and bad environment. The outer shell material is aluminum alloy, has enough strength, light weight and easily carrying.Inside parts use best alloyed steel, with advanced technology, all parts through strictly checked and certificated, and ourpulling hoists meet CE standards to ensure our high quality.
Wire rope pulling hoist features:
1. Regular Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M. The lifting height can be customized.2. All hoists are supplied complete with 20 meter wire rope and an extendable operating lever. 3. Wire rope is tapered one end and fitted with a hook and safety catch at the other end. 4. Easy maintenance5.Overload protection ensures unparalleled safety when in operation. 6. Specially built-in shear pins can be replaced without removing the load.
Product Details
Product Parameters

Wire Rope Pulling Hoist
Lifting Capacity (kg)	800	1600	3200	5400
Rated forward hand power(N)	341	400	438	850
Rated forward travel(mm)	>=52	>=55	>=28	>=25
Rope diameter(mm)	8.3	11	16	20
Wire rope safety factor load capacity	5×WLL	5×WLL	5×WLL	5×WLL
Safety factor &static load capacity	4	4	4	4
MAX.traveling load(kg)	1200	2400	4000	8100
Net weight	6.4	12	23	56

Packaging & Shipping
Product Application
About Us
FAQ
Q1: What are you? Trade Company or manufacturer?
We are both manufacturer & trading company

Q2: What's the advantage of your company?
We've experienced manufacturer and overseas dealer. Our products have been exported to over 110 countries.
An independent research team especially focusing on crane and hoist design upgrade. A professional service
team for customers will provide feedback within 24 hours.

Q3: What's the sample & MOQ to your company?
Sample order MOQ can be 1 set and the product you ordered will be sent in a week as long as inventory is available.

Q4: Can I customize the product according to my own willing?
Yes, OEM/ODM are available, we can customize as customer's request.

Q5: How is the package during transportation?
Composite wooden crate for the electrical parts, waterproof cloth for the steel structure, then packed in a metal crate.

---
