| Drilling Machine |

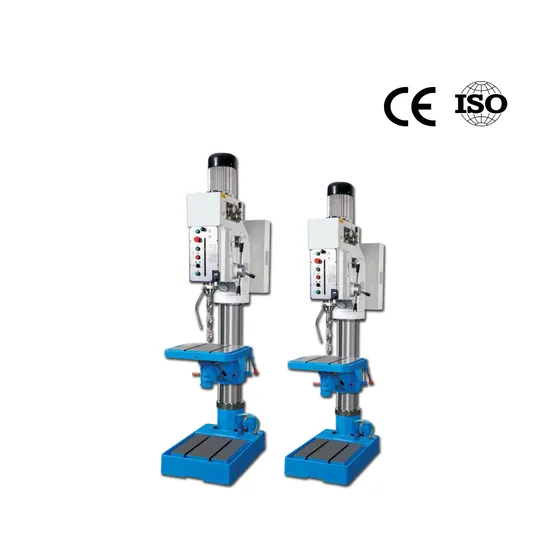

| Gear-driven Drilling Machine |
| Feature |
| New designed, pleasing appearance, compact construction, wide speed change range, easy to operate. Unique table with electric and manual lifting mechanism for easy operation. The table can be rotated 180°and can be tilted ±45° also, it is reliable and easy job can be done. Equipped with coolant system and tapping mechanism. Equipped with shortcut and overload protection, its electric system with powerful spindle motor, it is designed according to IEC standard. Characteristic protection device is safe and reliable. Ideal choice for single piece, small batch and mass production for drilling, counterboring, reaming, tapping, spot facing, etc. |
| Specifications | Z5040 | Z5050 |
| Max. drilling diameter | 40mm | 50mm |
| Max. tapping diameter | M27mm | M30mm |
| Column diameter | 160mm | 180mm |
| Spindle travel | 180mm | 240mm |
| Distance from spindle center to column center | 360mm | 360mm |
| Max. distance from spindle nose to table | 590mm | 570mm |
| Max. distance from spindle nose to base | 1180mm | 1160mm |
| Spindle taper | MT4 | MT4 or MT5 |
| Spindle speed range | 42-2050r/min | 42-2050r/min |
| Spindle speed steps | 12 | 12 |
| Spindle feed | 0.07 0.15 0.26 0.40mm/r | 0.07 0.15 0.26 0.40mm/r |
| Table size | 550x470mm | 550x470mm |
| Table travel | 550mm | 550mm |
| Base size | 450x440mm | 450x440mm |
| Overall height | 2330mm | 2380mm |
| Main motor | 2.2/2.8kW | 2.2/2.8kW |
| Coolant motor | 40W | 40W |
| N.W./G.W. | 755/815kg | 985/1045kg |
| Packing size | 105x68x253cm | 105x68x259cm |
| Standard Accessories | Optional Accessories |
| Drill chuck | Multi-spindles |
| Arbor | Angle vice |
| Taper sleeve | Safety guard |
| Drift | |
| Eyelet bolts | |
| Wrench |
