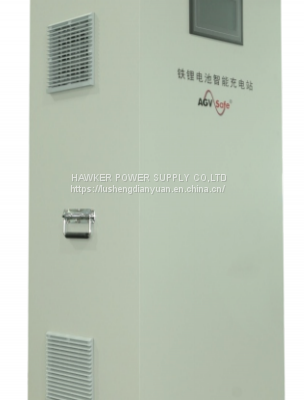

HAWKER LPC150-48 AGV SAFE CHARGER

Product Details

Product Description

Product Description
HAWKER LPC150-48 AGV SAFE CHARGER
HAWKER LPC150-48 AGV SAFE CHARGER
Product Features
This product is designed for automatic guided / pure electric passenger / electric forklift applications. Products from the basic power module N + 1 parallel combination, the maximum to meet the 24V120A power applications. The machine adopts the controller specially developed for AGV car application demand, realize the function of logic control, system protection, parameter setting, charger management, upper communication and so on, and adopts 7-inch full color touch screen to realize human-computer interaction.
The system has the following features:
●DC output 24V60A and 48V50A modular power supply, support current expansion upgrade.
●hot-swap mode, N + 1 redundant structure protection
●ultra-high power density, compact size
●Standard efficiency up to 92%
●variety use mode (independent charge, interactive charge, maintenance charge)
●With industrial communication bus (CAN / MODBUS / PROFIBUS DP)
●High protection safety rating (IP54), designed for industrial applications
This product is designed for automatic guided vehicles / electric forklifts and other applications. Products from the basic power module N + 1 parallel combination, the maximum to meet the 24V240A / 48V200A power applications. The machine adopts the controller specially designed for the AGV trolley application for the automatic production line. It realizes the functions of logic control, system protection, parameter setting, charger management, upper communication and so on, and adopts 7-inch full color touch screen to realize human-computer interaction.
The system has the following features:
●Ultra-high power, 240A @ 24V / 200A @ 48V
●hot-swap mode, N + 1 redundant structure protection
●ultra-high power density, compact size
●support current expansion upgrade
●Standard efficiency up to 92%
●Variety use mode (fast charge, interactive charge, balanced charge, maintenance charge)
●provide IO port for system interlock protection
●With industrial communication bus (CAN / MODBUS / PROFIBUS DP)
●High protection safety rating (IP54), designed for industrial applications
Product specifications

Voltage level

24Vsystem

48Vsystem

model

LPC120-24

LPC180-24

LPC240-24

LPC100-48

LPC150-48

LPC200-48

power

3600W

5400W

7200W

6000W

9000W

12000W

recharging current

5~120A

5~180A

5~240A

5~100A

5~150A

5~200A

Input voltage

220VAC±10%，50/60Hz（Optional 380VAC±10%）

Power factor

≥0.99@220Vac/50A, ≥0.98@220Vac/25A（Single module）

Dynamic adjustment rate

±5.0% for 10-90% or 90-10% Load change, Adjust the time

Load Regulation

±0.5% from 10% to 100% load

Charging voltage

16～30VDC

43～58VDC

Steady flow accuracy

≦±0.5%

Noise voltage

<200 mV Peak peak, 30 MHz bandwidth,

Regulation accuracy

≦±0.5%

Time accuracy

≦±10S/24h

Charging parameter settings

Voltage

0.01V

Current

0.1A

time

Dimensions

According to power

weight

According to power

Operating temperature

0℃~45℃

Storage temperatur

-10℃~40℃

Working humidity

Relative humidity 10%~80%，No condensation

protection

Overcurrent, overvoltage, overtemperature, reverse, missing, short circuit, cut off

communication

CAN/MODBUS/ PROFIBUS DP Optional

Interaction DIO

Dry contact DIO, Battery contact informs, standby, charging, charging is complete, faulty

safety standard

IEC 60950-1

Electromagnetic compatibility standards

EN 61000-6

environment

ETSI EN 300 019-2 RoHS compliant

Insulation and pressure

3.0 KVAC –Input pair output 1.5 KVAC –Input to ground 0.5 KVDC –Output to ground

Average trouble-free working hours

5 Million hours

noise

50DB

LPC120-24 charging station dimensions:
LPC120-24 above specifications charging station Dimensions:
The charging station uses floor-mounted foot installation mode.
HAWKER LPC150-48 AGV SAFE CHARGER
Dimensions specifications

Types	Battery size Longwidehigh（mm）	Charge continuous current	Discharge continuous current
EV24-40	315237165mm	80A	20A
EV24-60	315240215mm 320237188mm 460220150mm	120A	30A
EV24-80	355330215mm	160A	40A
EV24-100	355330215mm	200A	50A
EV24-120	400275245mm	180A	60A
EV24-200	550210425mm	200A	100A
EV48-30	345238200mm	60A	30A
EV48-60	590240240mm	120A	30A
EV48-80	585345230mm	160A	40A
EV48-100	585345230mm	200A	50A
EV48-160	605435255mm	160A	80A
EV48-200	615650250mm	160A	100A
EV48-250	605290480mm	200A	125A
