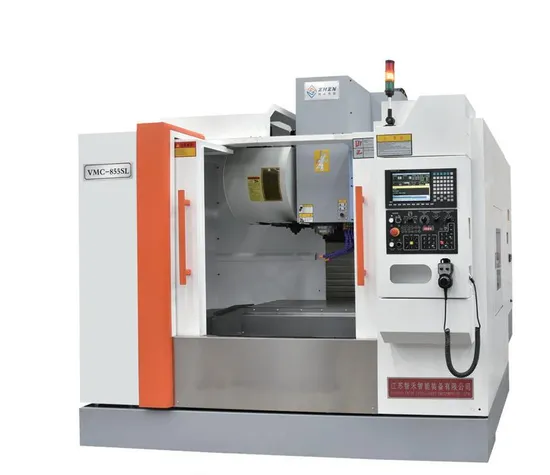

Vmc -850SL/855SL/960SL/1160SL Vmc-1375SL/1580SL High-Speed Vertical Milling Center

Product Description

VMC -850SL/855SL/960SL/1160SL VMC-1375SL/1580SL
High-speed vertical machining center
High-speed vertical milling center
The bed has a solid structure and can with stand the inertia generated by high-speed motion.
The X/Y/Z three-axis adopts high-speed mute screw and mute wire rail to reduce thermal displacement and achieve high accuracy.
Adjust the displacement at 48 meters, which can save 50% of non processing time.
Elevated column design, reserving space for installing the fourth and fifth axes.
The three-axis shield protects the screw wire rail to improve the service life of the machine tool.
The bed has a solid structure and can withstand the inertia generated by high-speed motion.
MAIN SPECIFICATION
SPECIFICATION

ITEMS		VMC- 8 5 0 SL	VMC- 8 5 5 SL	VMC- 9 6 0 SL	VMC- 1 1 60SL	VMC- 1375SL	VMC- 1 580SL
X AXIS MOVEMENT	mm	800	800	900	1100	1300	1500
Y AXIS MOVEMENT	mm	500	550	600	600	750	800
Z AXIS MOVEMENT	mm	500	550	5 00 ( 700)	600	700	700
SPINDLE NOSE TO WORKTABLE SURFACE DISTENCE	mm	120 -620	120-670	120-670	100-660	1 20-820	1 30-830
DISTENCE FROM SPINDLE CENTER TO COLUMNS PROTECTION SURFACE	mm	550	570	600	645	765	810
WORKTABEL SURFACE	mm	1000× 500	1000× 550	1050× 600	1200× 600	1400× 700	1700× 800
MAX LOAD	kg	500	500	600	800	1200	1500
WORKTABLE T-SLOT	mm	5- 18/90	5- 18/90	5- 18/100	5- 18/100	5- 18/140	5 -22/ 135
TAPER		BT40	BT40	BT40	BT40	BT40	BT50
SPINDLE ROTATION SPEED (OPTION DEPENDS ON CONTROL SYSTEM)	rpm/min	12000	10000 (STANDRD)	8000((STANDRD))/1 0000	8 000( (STANDRD))/1 0000	8 000( (STANDRD)/1 0000	8000
SPINDLE MOTOR	kw	7.5	7.5/11	7.5	7.5/11	11/15	18.5
3 AXIS MOTOR ( X/Y/ Z)	kw	2/2/3	2/2/3	3/3/3	3/3/3	3/3/3	4.5/4.5/4.5
CONTROL SYSTEM (OPTION)		FANUC/Mitsubishi
X,Y, Z AXIS RAPID MOVE SPEED	m/min	48/48/48			36/36/36	24/24/24	20/20/20 ( 12/ 12/ 12)
POSTION ACCURACY	mm	JIS± 0.005/ 300	JIS± 0.005/ 300	JIS± 0.005/ 300	JIS± 0.005/ 300	JIS± 0.005/ 300	JIS± 0.005/ 300
REPEAD ACCURACY	mm	JIS± 0.003/ 300	JIS± 0.003/ 300	JIS± 0.003/ 300	JIS± 0.003/ 300	JIS± 0.003/ 300	JIS± 0.003/ 300
PRESSURE	kg/cm2	≥ 6	≥ 6	≥ 6	≥ 6	≥ 6	≥ 6
CUTTER NOS		24	24	24	24	24	24
MACHINE WEIGHT	T	4	5	5	8	11	14
MACHINE SIZE L W H	mm	2200× 2100 × 2500	2650 × 2200× 2800	2750× 2200× 2700	3300× 2600× 2800	3600 × 3000× 2850	4300 × 3200× 3500

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
