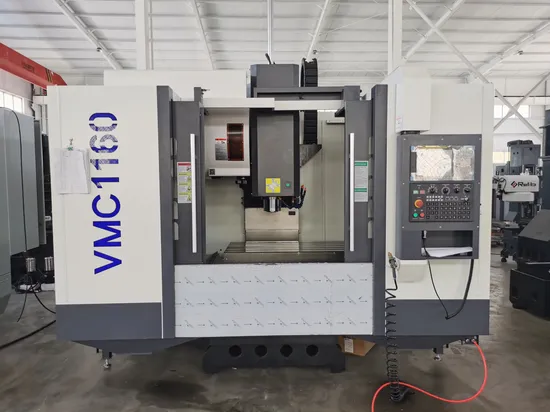

VMC1160 Vertical Milling Machine Center OEM China Xili

VMC1160 vertical CNC machining center is a high-quality, high-precision and high-performance technology intensive product designed and manufactured by our company. This machine tool has novel design and elegant appearance. It has the advantages of stable precision, reliable performance, convenient and flexible operation.

Features:

-resin sand castings, after aging treatment, inside with mesh stiffeners, ensure good stability of structure
-3-axis roller linear guideways, Z-axis designed with six sliding blocks, high speed, high rigidity, low friction, low noise, long service life
-3-axis large pitch ball screws, pre-drawing treatment, good rigidity, good accuracy, high speed
-direct connection structure between servo motors and ball screws, ensures positioning accuracy
-Taiwan brand spindle unit, P4 spindle bearings, high speed, high rigidity, good accuracy

Main Parts	Brand	Origin
Ball screw	HIWIN	Taiwan
Linear guideway	HIWIN / PMI	Taiwan
Bearing	NSK	Japan
Spindle	ROYAL	Taiwan
Electrical component	Schnider	French
Central lubrication	HERG	Japan
Tool magazine	Deta / Firdi	Taiwan

Detailed Photos
Product Parameters

Items	Unit	VMC1160	VMC855	VMC750
Working area
Table size	mm	1200x600	1000x550	900x500
Max. load of table	kg	800	500	400
T-slot (width x No. x pitch)		5/18/125	5/18/90	3/18/125
Distance from spindle nose to table	mm	120-720	120-670	120-620
Distance from spindle axis to column	mm	650	575	560
Table travel of X axis	mm	1100	800	700
Table travel of Y axis	mm	600	550	500
Headstock travel of Z axis	mm	600	550	500
Spindle
Spindle taper		BT40	BT40	BT40
Spindle diameter	mm	150	150	120
Spindle speed	rpm	8000	8000	8000
Main motor power	kw	11	7.5	5.5
Feed
Feed speed-X/Y/Z	mm/min	1-8000	1-8000	1-12000
Rapid speed-X axis	m/min	24	36	36/48
Rapid speed-Y axis	m/min	24	36	36/48
Rapid speed-Z axis	m/min	20	32	32
Tool magazine
Type		Disc 24T	Disc 24T	Disc 20T
Max tool diameter	mm	80/150,80/130	80/150,80/130	80/150,80/130
Max tool length	mm	300	300	300
Max tool weight	kg	6/7	6/7	6/7
Others
Positioning accuracy	mm	±0.005	±0.005	±0.005
Repeat positioning accuracy	mm	±0.003	±0.003	±0.003
Machine overall dimension (LxWxH)	mm	2900x2400x2800	2640x2180x2600	2640x2180x2450
Net weight	kg	7200	5400	4200

larger models

Items	Unit	VMC1275	VMC1580
Table size	mm	700*1300	800*1600
Table travel X,Y,Z	mm	1200,750,600	1500,800,700
Max table load	kg	1000	1500
Distance between spindle and table surface	mm	120-720	155-855
Spindle center to column surface	mm	775	855
Rapid feed speed X	m/min	24	24
Rapid feed speed Y	m/min	24	24
Rapid feed speed Z	m/min	20	20
Cutting feed rate	mm/min	1-10000	1-10000
T-slot (N/W/D)		18x7x100
Spindle speed range	rpm	8000	8000
Spindle taper	/	BT40 (φ150mm)	BT50 (φ155mm)
Spindle motor power	Kw	11/15	11/15
Magazine capacity	T	24	24
Tool magazine type		Disc type	Disc type
Max tool diameter	mm	Φ80-150/80-130	Φ105/200
Max tool length	mm	300	300
Max tool weight	kg	6/7	15
Positioning accuracy	mm	±0.005	±0.005
Repeatabiblity	mm	±0.003	±0.003
Overall size	mm	3050 X 2273 X 2400	3200X2540X2600
Net weight	kg	8500	17000

Certifications

We have 68 patents and all of our products have got the CE,TUV,SGS,ISO9001/9002 and other authority approved.
Packaging & Shipping

Delivery time: generally 3 months production time after confirmation of order Packing type: machine need to be dismantled to load into container, covered with damp-proof plastic film, then packed in thickened water-proof cover on steel pallet
Company Profile

Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories. We are manufacturer not trading company.All our products passed CE, ISO9001. We also do OEM for Germany KNUTH, OPTIMUM, Austria Bernardo, America JET and so on. You can trust our quality and service. Hope we can built long-term business relationship with you.
Our Advantages

We will supply enough spare parts and accessories with our Manual Mill Milling Machine when shipment. Within one year after receiving our manual mill milling machine, If there are any damaged parts or accessoreis, We will supply them to you by air-mail free of charge. FAQ

1. What is the MOQ ?
Minimum order quantity is 1 set.
2. What is the payment term ?
Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videosOther payment terms are also acceptable after discussion.
3. What is the trade terms ?
Jsually is FOB.
Others like CIF,CFR,EXW...... are also acceptable.
4. How long is the guarantee ?
12 month after machine's delivery from factory.
Within waranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5.What kinds of machines do you supply?
Company specialized in producing CNC & manual milling machines. Include:
CNC gantry machining center
Vertical machining center
Simple NC milling machine
Conventional manual milling machines (Vertical, Horizontal, Universal, Turet mil, Swivel head mil, Power sliding ram type, Bed type,Tool milling machine, Gantry type etc.)
6.How can I believe your company ?
XILI Machine Tool has more than 20 years milling machine production history. covers an area of about 50000 square meters,with 20 million CNY fixed assets and more than 300 employees.
Xili Machine Co.,Ltd. is a ISO9001 company, all products are with CE certificate.
Welcome your inquiry and visiting.

---
