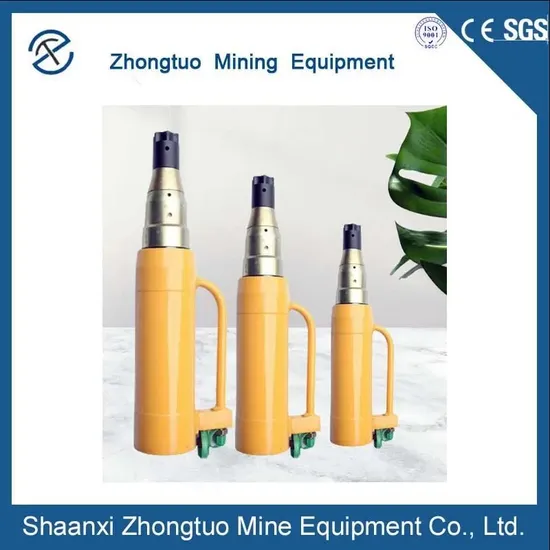

Prestressed Hydraulic Mono Strand Stressing Jack

Product Description

Product Description
1 . Main parts of the jack are made of high-strength steel, it has the advantages of compact structure, lightweight, small size, etc.
2 . Short axial length, steel wire tension for short length, and can save steel material.
lifting and flexible, durable, easy operation, and convenient maintenance. Technical Parameters

Model	Tensile force (KN)	Oil pressure (Mpa)	Through-hole diameter (mm)	Install limit plate aperture(mm)	Mounting tool (mm)	Outside diameter size (mm) Diameter * Height
YDC650	650	48	72	99	95	200*385
YDC1000	1000	50	78	111	111	230*385
YDC1500	1500	52	94	150	150	270*390
YDC2000	2000	53	118	177	177	320*400
YDC2500	2500	52	128	210	185	345*400
YDC3000	3000	52	135	190	185	370*400
YDC3500	3500	51	160	232	232	420*400
YDC4000	4000	52	165	252	252	450*410
YDC5000	5000	52	196	260	265	500*410
YDC6500	6500	53	220	295	235	580*420
YDC10000	10000	50	270	440	415	740*570

Schematic diagram of Multi Stand Jack
1. Positioning nut 2.Plug 3. Oil cylinder 4. Piston
5. Heart Sleeve 6. Sealing plate 7. Compression ring
Jack's minimum working space
Minimal working space: B*C
Steel strand reserved: A
Installation size: E
Installation size: F
FAQ:
Q1: Are you a factory or trade company?
A1: We are a factory. And we have ourselves trading company.

Q2: What is the exact address of your factory?
A2: No.27, Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.
Q3: Warranty terms of your machine?
A3: One-year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts for the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, and 3phase. The voltage can be customized according to your equipment.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)
Q7: How long will it take to arrange production?
A7: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with a professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.
Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight.
Q11: What are your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.
