Coffee Powder Mixing Equipment Vertical Conical Ribbon Mixer

Product Description

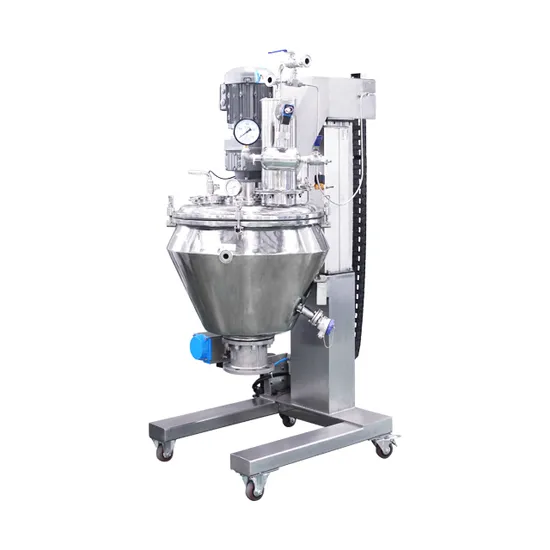

Product DescriptionVertical Ribbon Vacuum Dryer is a multi-function mixer combines mixing, reaction and drying. It is widely used in industries of food, adhesive, lithium battery, etc. The mixer is equipped with heating jacket, and its main shaft and ribbons can be also with heating function (to improve drying efficiency furthermore). Its main shaft is with mechanical seal to achieve high vacuum sealing effect. Connecting to the vacuum system, it can realize efficient drying (the drying efficiency is 3-5 times than that of the double cone rotary vacuum dryer with same specification); In front of the vacuum system, it is equipped with a dust collector, a condensation recycle device, a solid-gas separation device, etc., in order to reduce the loss of raw materials and environmental pollution as much as possible. The whole system can be designed with PLC intelligent control (such as temperature, vacuum degree, speed, etc.), and with signal interface to realize remote control.

Materials Specific Gravity	≤3g/cm³
Capacity	40-8,000L
Application	Suitable for the mixing of food, pesticide, dyestuff, chemical industry, plastic, ceramic, chemical fertilizer, rubber,etc..
Materials	Powder or particle whose specific gravity is up to 3g/cm³and with certain fluidity, liquid content is under 20%, such as flavoring, pesticide, reactive dyes, etc.

MIXING AGITATOR STRUCTURE
Double ribbon mixing structure, fly cutters available; The main shaft,addles, and ribbons all can be inject with the heating medium. MIXING AGITATOR STRUCTURE
Double ribbon mixing structure,fly cutters available; The main shaft,addles, and ribbons all can be inject with the heating medium. VERTICAL DRYING MIXER PRODUCTION LINE
The mixing barrel and top cover with oil heating jacket,the max.Temp.Can be 220°C;Discharge valve with pneumatic V type ball valve,less dead area in drying;With vacuum and condenser system,vacuum degree can be -0.098Mpa. PRODUCTION USE VERTICAL DRYING MIXER
The max. Batch capacity can be 8000L;The machine materials can be stainless steel materials, or painting with wear resistant material;Ex-proof type motor can be customized. Projects DisplayIndustrial ApplicationsRelated Products
Company ProfileSIEHE GROUP established in year 2009, start with liquid machine manufacturing. After more than ten years of efforts, SIEHE Group has developed into large-scale machinery industry group company. lts headquarter is located in Honggiao, Shanghai, China. lts production bases are in Jinshan, Shanghai,Wuxi and Yangzhou in Jiangsu, with a total plant area around 32000m2. The production bases are equipped with more than 160 sets of advanced production processing and testing equipment including: turning and miling center, large gantry five- axis machining center, horizontal five-axis boring and miling machining center, Vertical five axis machining center, vertical CNC lathe machining center, trilinear coordinates precision measuring instrument, image measuring instrument precision altimeter etc.. With strong production and quality control capacity, SIEHE group carries out product design, processing,assembly and testing in full accordance with the lSO9001 quality management system, and has passed professional institution certification.
Production Equipment
Five-axis Gantry Machining Center Turning and Milling Center CNC Boring and Milling Machining Center
CNC Vertical Lathe Vertical Machining Center CNC Five-axis Gantry Machining CenterCustomer Photos

---
