Long Life Time Overhead Crane End Carriage for Single Girder Eot Crane Suspension Crane End Carriage / Wheel Block / End Truck

Product Description

Product Description

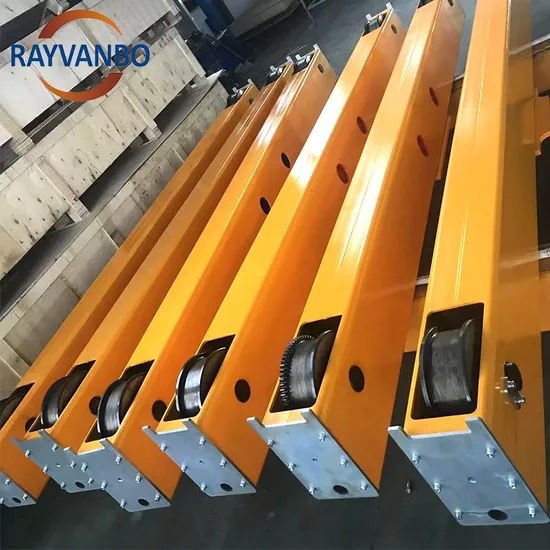

End carriage made of rectangular tube, transmission mechanism use gear reducer motor, equipped with the open pinion wheel or hollow shaft wheel. Suitable for single girder or double girder overhead crane. Wheel tread surface heat treatment.It only need to weld the main beam and end beam after correction. Making crane manufacturing, installation and maintenance very easily.European type End carriage adopts F-series reducer and hollow shaft drive, working duty reach M5.
Crane End Carriage use rectangular tube manufacturing module, buffer motor drive, match with forged wheels, using numerical control lathe boring and milling of various Customized machine, Disposable completes the opening, boring, milling drilling. RAYVANBO end carriages offer high flexibility and operating reliability. These compact, modular rail-mounted travel units can be connected directly to crane girders and load-bearing structures. Our end carriages consist of a torsionally rigid box section and complete travel units with gear motors and wheels, which can be configured for all load capacity ranges. These combinations enable us to meet your specific application requirements for safe and effective crane and machinery travel motions.
You just need to joint and adjust crane girder and the end carriage. The low cost, makes your crane manufacturing, installation and maintenance very easy.
Bridge Crane End Carriage Features: End carriages are the rectangular steel pipe and welding molding in a CNC machine tool positioning processing, steel material; each end carriage is equipped with a double wheel rim wheel group, buffer and anti-derailment protection device. 1. Travel units with precisely manufactured wheels made of wear-resistant material provide for smooth running characteristics
2. Variable-speed inverter-fed drives for precise positioning and gentle loads on the entire design
3. Low maintenance costs: the travel units are rated for the entire crane service life Our supported and suspended end carriages, standardized wheel heads and bogies are ideal for single-girder cranes, double-girder cranes, and other industrial applications.
Product Parameters

End carriage model	Application of crane model	Rectanglar steel tube	Wheel size	Motor power
L125-15	1t-7.5m	150*150*6	W125*60	0.3KW*2
L125-20	1t-11.5m
L125-25	1t-16.5m
L160-15	2t/3t-7.5m	150*200*8	W160*70	0.4KW*2
L160-20	2t/3t-11.5m
L160-25	2t/3t-16.5m
L160-30	2t/3t-22.5m
L160-35	2t/3t-28.5m
L200-20	5t-11.5m	150*250*8	W200*70	0.4KW*2 0.75KW*2
L200-25	5t-16.5m
L200-30	5t-22.5m
L200-35	5t-28.5m
L250-20	10t-11.5m	200*250*8 200*300*8	W250*80	0.75KW*2 1.1KW*2 1.5KW*2
L250-25A	10t-16.5m
L250-30A	10t-22.5m
L250-35A	10t-28.5m
L250-25B	16t-16.5m
L250-30B	16t-22.5m
L250-35B	16t-28.5m
L315-30	20t-16.5m	200*400*8	W315*90	1.5KW*2
L315-35	20t-28.5m

Product Application
Any question will be sincerely and professionally handled! Waiting for your inquiry!
Packaging & Shipping
About Us FAQ Q1: What are you? Trade Company or manufacturer?
We are both manufacturer & trading company

Q2: What's the advantage of your company?
We've experienced manufacturer and overseas dealer. Our products have been exported to over 110 countries.
An independent research team especially focusing on crane and hoist design upgrade. A professional service
team for customers will provide feedback within 24 hours.

Q3: What's the sample & MOQ to your company?
Sample order MOQ can be 1 set and the product you ordered will be sent in a week as long as inventory is available.

Q4: Can I customize the product according to my own willing?
Yes, OEM/ODM are available, we can customize as customer's request.

Q5: How is the package during transportation?
Composite wooden crate for the electrical parts, waterproof cloth for the steel structure, then packed in a metal crate.

---
