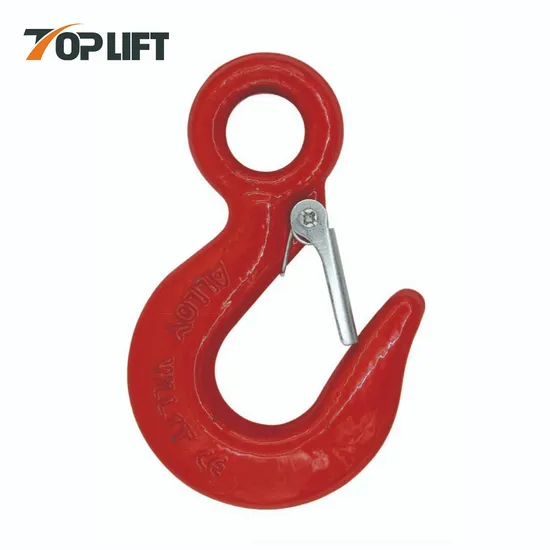

Carbon Steel Alloy Steel Us Type Eye Sling Hook with Safety Latch

Product Description

G70&43 Carbon Steel Alloy Steel Us Type Eye Sling Hook for Rigging Hardware Product Information:
Available in carbon steel and alloy steel
Forged -quenched and tempered
Breakage test
100% magnaflux crack detection
Surface:Powder plastified
Colour: Red RAL3020/Yellow RAL1003
Specification

TP320-320 U.S.TYPE EYE HOOK
Ultimate load is 5 times the Working Load Limit.
Model	Alloy		Carbon		D±1 (mm)	E±2 (mm)	H±1.5 (mm)	K±2.5 (mm)	L±3 (mm)	N±1.5 (mm)	Weight (kg/pc)
	W.L.L	B.L.	W.L.L	B.L.
TP320-A0.75T/C0.5T	0.75T	3.75T	0.5T	2.5T	16.5	18	1	72	97	16	0.21
TP320-A1T/C0.75T	1T	5T	0.75T	3.75T	19	22	20.5	82	112	16	0.27
TP320-A1.5T/C1T	1.5T	7.5T	1T	5T	23	24.5	21.5	94	126	17.5	0.4
TP320A2T/C1.5T	2T	10T	1.5T	7.5T	28	25	26	104.5	142	21	0.6
TP320-A3T/C2T	3T	15T	2T	10T	31	27	28	120	163	23	0.84
TP320-A5T/C3T	5T	25T	3T	15T	39	35.5	40	146	203	33	1.81
TP320-A7T/C5T	7T	35T	5T	25T	51	44	45	187.5	255	38	3.35
TP320-A11T/C7.5T	11T	55T	7.5T	37.5T	62	55	57	231.5	317	46	6.1
TP320-A15T/C10T	15T	75T	10T	50T	73	57	66	262	360	55	9.6
TP320-A22T/C15T	22T	110T	15T	75T	89	83	79.6	318	433	68.5	16
TP320-A30T/C20T	30T	150T	20T	100T	90	95	91	360	495.5	70	25.8

FAQ
What can we do?
1. Meet all of your lifting equipments &riggings' needs.
2. Service on inspection for lifting equipments and rigging material.
How do you control your quality?
1.Selection of high-quality steel material from famous steel group.
2.Production process standardization, process standardization, refinement.
3.100% Finished Product Testing.
4.The third party product inspections are acceptable.
5.ISO Quality Management System Certificated Factory
6.Inspection before loading
What are your advantages compared with others?
1.Specializing in the field of lifting equipments and rigging product supply for around 10 years., have rich experience in Production.
2.The same quality product, the best price.
3.Timely Delivery with the support of 3000 square meters workshop.
4.Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5.Over 20 Professional Staff in Trading Team,Let you enjoy worry-free and effective communication.

---
