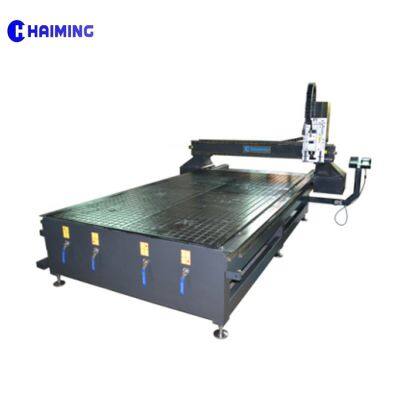

Product Description
Product Description
Features
Mobile gantry mechanical characteristics:
1.all-steel structure, to stress treatment, precision machining.
2.X, Y-axis drive: are high-precision helical rack and pinion drive, run fast; X axis dual-motor synchronous drive.
3.Z-axis drive: high-precision ball screw drive sliding coefficient is low, small friction, smooth operation and fast.
4.X, Y, Z axis drive: adopt high-precision linear guide.
5.Drive system: closed-loop stepper motor.
6.knife device: automatic surface with a knife device that can automatically detect the material surface and the maximum depth.
7.Configuration: electrical control part of the world-renowned brands.
8.Control System: Shanghai Weihong.
Technical Data
| Model | HM1530S | HM2040S |
| Processing size(mm) | 1550X3050 | 2050X4050 |
| Repeat accuracy (+/-mm) | 0.05 | 0.05 |
| The maximum cutting speed (mm/min) | 30000 | 30000 |
| The highest rate of return (mm/min) | 35000 | 45000 |
| Beam to the height of the table(mm) | 200 | 200 |
| Z axis travel(mm) | 280 | 350 |
| Transmission mode | X/Y/ Z wire rod | X/Y/ Z wire rod |
| X/Y transmission mode | 30 high-precision linear guide | 30 high-precision linear guide |
| Z transmission mode | 25 high-precision linear guide | 25 high-precision linear guide |
| Fixed mode | Vacuum adsorption | Vacuum adsorption |
| Spindle power | HSD6KW | HSD6KW |
| Spindle speed | 18000 | 18000 |
| The servo driven | Closed-loop stepper motor torque | Closed-loop stepper motor torque |
| Working voltage | AC380/PH/50Hz | AC380/PH/50Hz |
| Operating system | Shanghai Weihong | Shanghai Weihong
|
>>
