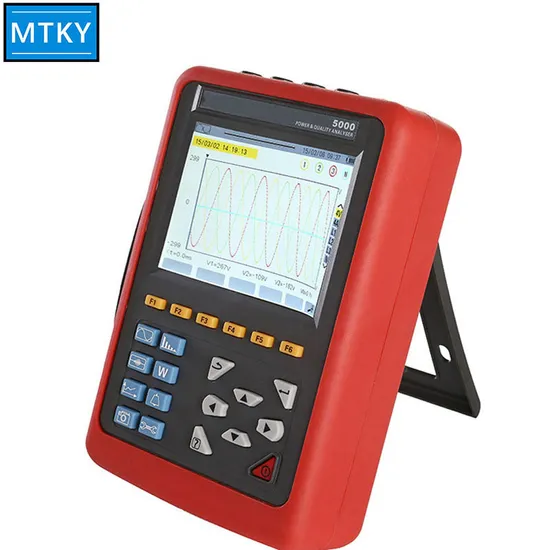

Three Phase Power Quality Analyzer with Digital 3 Phase Power Analyzer Current Sensor
Power supply
| Rechargeable lithium-ion battery packs 9.6V, backup charger.
|
Battery indicator
| Battery symbolshows dump energy. When the voltage is too low, automatic shutdown after the 1 minute.
|
Power consumption
| Current consumption of normal test 490 mA, continuous working for 8 hours.
|
Display mode
| LCD color screen, 640dots×480dots, 5.6 inches, display domain: 116mm×88mm.
|
Size of clamp
| 008B small sharp current clamp: 7.5mm×13mm;
|
040B circle current clamp: 35mm×40mm;
|
068B circle current clamp: 68mm×68mm.
|
300FFlexible coil current sensor(with Integrator) : Ф300mm (not included)
|
Instrument dimensions
| L×W×H: 240mm×170mm×68 mm.
|
Number of channels
| 4U/4I.
|
Phase-to phase voltage
| 1.0V~2000V.
|
Phase-to-neutral voltage
| 1.0V~1000V.
|
Current
| 008B current clamp: 10mA~10.0A;
|
040B current clamp: 0.10A~100A;
|
068B current clamp: 1.0A~1000A;
|
300F Flexible Coil Current Sensor (with Integrator) : 10A ~ 6000A
|
Frequency
| 40Hz~70Hz.
|
Parameters of electricity
| W, VA, Var, PF, DPF, cosφ, tanφ.
|
Energy parameters
| Wh, Varh, Vah.
|
Harmonic
| Order 0~50.
|
Total harmonic distortion
| Order 0~50, each phase.
|
Expert mode
| Yes.
|
Number of Transient records
| 150 sets.
|
Voltage flicker
| Yes.
|
Starting current mode
| Yes, 100 seconds.
|
3 phases unbalance
| Yes.
|
Record
| 300 days(simultaneous recording 20 parameters, record one point every 5 seconds).
|
Min/Max recorded value
| Measurement of maximum and minimum values over a period of time.
|
Alarm
| 40 different types of parameter selections, 12,800 sets alarm logs.
|
Peak
| Yes.
|
Phasor diagram display
| Automatically.
|
Capacity of snapshots
| 60
|
Menu language
| English/Chinese.
|
Communication
| USB.
|
Automatic switching off
| When an alarm campaign is initiated or a search for transients, an inrush current capture, or a trend recording is pending or in progress, the device is not automatic switching off.
|
In other test mode, 15 minutes without keystrokes, automatic shutdown after prompt 1 minute.
|
Backlight function
| Yes, suitable for use at night and dark place.
|
Weight
| Host: 1.6kg (with battery).
|
008B small sharp current clamp: 170g×4;
|
040B circle current clamp: 190g×4;
|
068B circle current clamp: 510g×4;
|
300F Flexible Coil Current Sensor (with Integrator) : 330g×4;
|
Test wires and power adapter: 900g;
|
Total weight: about 9.2kg (with packaging).
|
Length of voltage test wire
| 3m.
|
Length of current sensor wire
| 2m.
|
Working temperature and humidity
| -10°C~40°C; below 80%Rh.
|
Storage temperature and humidity
| -10°C~60°C; below 70%Rh.
|
Input impedance
| Input impedance of test voltage: 1MΩ.
|
Withstand voltage
| Withstand 3700V/50Hz sinusoidal AC voltage for 1 minute between instrument wiring and shell.
|
Insulation
| Between instrument wiring and shell ≥10MΩ.
|
Structure
| Double insulation, with insulation vibration-proof sheath.
|
Safely rules
| IEC 61010 1000V Cat III / 600V CAT IV, IEC61010-031, IEC61326, Pollution degree: 2
|
