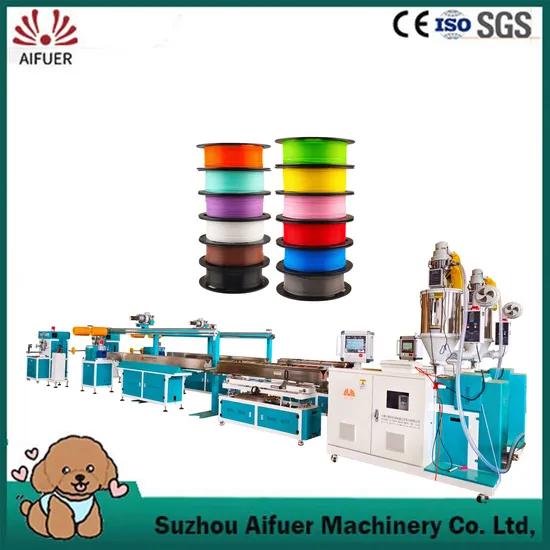

10kg/H PLA ABS ASA PETG Extrusion 3D Filament Extruder Machine

Product Description

:https://aifuermachine.en.made-in-china.com/product-list-1.html

1	Hopper dryer (50KG)	1set
2	SJ-45/28 single screw extruder	1set
3	Siemens PLC (Touch control Panel /Closed Loop system)	1set
4	Mold&die(1.75mm)	1set
5	Air cooling system for high temperature raw material	1set
6	Hot water tank for low temperature raw material or re-cooling	1set
7	Water cooling tank	1set
8	Laser Diameter measurement	1set
9	Servo haul off machine	1set
10	Servo winding machine	1set
11	Chiller	1set

https://aifuermachine.en.made-in-china.com/product-list-1.html SJ45-28: 15~25kg/hThis filament extruder shown in the video is our SJ25-28. It is the same as our big filament extruder machine, adopting servowinding and tension controlled storage system.
Screw dia.:¢45mm
L/D: 28:1
Screw max. Rotation speed:72 rpm
Heating zone : 3 zones
Heating power: 1.2* 4kw
Heating ring: Stainless steel cover Heating method: Ceramic 2heater
Main motor power:2.2KW motor
Connection method for motor and reducer: Straight connection
Cabinet material:aluminium alloy
Center height: 960mm
Material: stainless steel 304
Air cooling table length: 3000mm
Forming table length: 3000mm
Air cooling platform height: 900mm
Variable frequency control
Fan outlet *4
https://aifuermachine.en.made-in-china.com/contact-info.html

Raw material	PEKK ,PEEK ,PPA,PAS etc
Capacity	15-20kg/h
Filament dia.	1.75mm
Filament dia. tolerance	+/-0.03-0.05mm
Speed	Adjustable

---
