Gear Head Drilling and Tapping Machine Zs-40 Zs-40p Zs-40HS Zs-40PS

Product Description

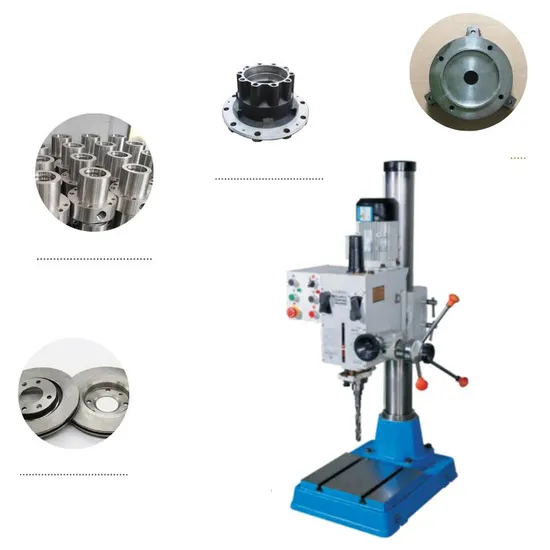

GEAR HEAD DRILLING &TAPPING MACHINE ZS-40/ZS-40P/ZS-40HS/ZS-40PS
Characters:
The machine adopt gear driving and the driving moment is strong.
The machine has the six series speed variable feature,which can be widely fit for processing to kinds of common hard &
soft material.
The Head can rotated 360" and can tilted +45° it reliable and easy job can be done.
The motor drive by the gear, which overcome the short coming of the belt skid. According to the customer demand the machine can dril, enlarge, ream and tap the multi-holes by the multi-spindles
"P" With collantsystems "H" Without collant systems.
Specification:

Model No.	ZS-40/ZS-40P	ZS-40HS/ZS-40PS
Item No.
Moving
Max.Drilling capacity	Steel 32mm Cast iron40 mm	Steel 32mm Cast iron40 mm
Max.Tapping capacity	SteelM24 Cast ironM32	SteelM24 Cast ironM32
Diameterof column	115 mm	115 mm
Spindle
Spindle travel	120 mm	120 mm
Distance spindle axis to column generating line	272.5 mm	272.5 mm
Max.Distance spindle nose to table	/	745 mm
Max.Distance spindle nose to base	800 mm	1200 mm
Spindle taper	MT4	MT4
Spindle speeds	95 170 280 540 960 1600 r/min
Spindle speeds series	6	6
Dimension of worktable surface	/	570X470 mm
Table travel	/	515 mm
Dimension of base	635x460/690x520 mm	635x460 mm
Other
Overall height	1400/1450 mm	1760 mm
Main motor	Single-phase750 w Three-phase100 w	Single-phase750 w Three-phase100 w
N.W./G.W.	290/250,310/270 kg	350/310 kg
Packing dimension	75x73x146 cm	72x74x186/72x74x191 cm
Standard accessories		Specialaccessories
Drill chuck ф 16mm		Milling chuck
Cutterф 80mm		Angle vice
Taper sleeve		Safety guard
Arbor		Stand
		Drift
		Wrench
		Drawbar

Specification:
FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
