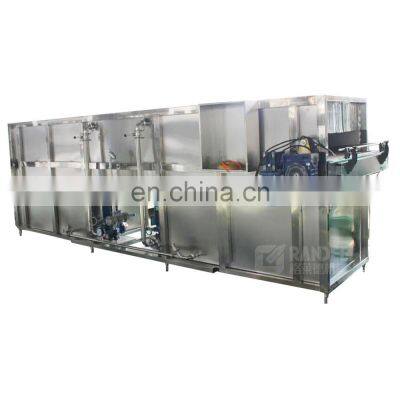

Water Spray Bottle Warming Machine For Carbonated Drink Production LineProduct DescriptionMachine description :The bottle warming machine adopts a three section steam recycling heating design,the water spraying water temperature shall be controlled around 40 degrees. After the bottle go out, the temperature will be around the 25 degrees. Users can fix the temperature according to need. All the end of the warmer, it is equipped with the drying machine to blow the water outside the bottle.It is equipped with the temperature control system. Users can adjusted the temperature by himselfMain features :The conveyor is frequency controlled.All nozzle and spray tubes are made of stainless steel and spray evenlyThe catchment flume is made of stainless steel and equipped with a level alarm deviceThe spray tunnel has a spray cooling recycling water pump and steam adjustment valveSteam consumption is adjusted according to the temperature. Pump: Hangzhou Nanfang ; Electrical-Magnetic, Air components: Taiwan AIRTAC Main technical parameter: ModelWP-4000WP-6000WP-12000WP-16000Output capacity(B/H)3000-50006000-900010000-1500024000-36000Heating temperature(°C)37-45Cooling time(min)12-15Conveying belt linear speed(mm/min)100-550Width of chain(m)1.221.221.221.22Steam pressure(Mpa)0.3-0.4Water consumption(m3/h)691528Steam consumption(kg/h)80120250280Motor power(kw)67.558.618Overall dimension(mm)6200*1500*170015800*1500*170015800*1800*170022000*800*1700Weight(kg)2500320043005500 Machine show: Spraying part Related ProductsCarbonated drink washing filling capping machine Capacity: 2000BPH to 20000BPH for 500ml bottle Filling temperature: 3℃ to 8℃Bottle range: 200ml-2250ml Bottle dimater: ≤340mmBottle height: ≤110mm Bottle material: PET bottle Bottle shape: round / flat / square bottle Carbonation mixer and air cooled type water chiller Capacity: 1500liters-20000liters/hr Co2 content: ≥3.5Carbonation mixer and Water chiller Process: Water, syrup, CO2 mixing systemCarbonation mixer: 1500L/Hr, 2000L/Hr,3000L/Hr,5000L/Hr,etc. Co2 content is from 2.0-3.8Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree (filling temperature) Soda Water Mixing SystemProcess: Sugar melting boiler or High level cutting tank, double filters, syrup pump, blending tank, stroage tankThe output of beverage processing system depending on how many liters per hour for carbonated drink, soda water or juice,etc.Syrup melting boiler: 300L/Hr, 500L/Hr, 1000L/Hr,etc, steam heating or electrical heating type, steam heating boiler will matched fuel oil boiler, but save electricity, eletrical heating type boiler will power-consuming.Blending tank: 1000L/Hr, 2000L/Hr, 3000L/Hr, etc, double layer with warming jacket, motor with blending system Storage tank: 1000L/Hr, 2000L/Hr, 3000L/Hr,etc. double layer with warming jacketBlowing Machine with different options: 1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities. 2. Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle. Full automatic sleeve labeling machineCapacity: 100-350bottles/min can be choosedLabel material: PVC PET OPS,etcBottle material: PET PE PP GlassBottle Diameter: 28 ~ 120mmBottle Height: 15~320mmBottle shape: round, square, ellipse, rectangularLabel length: 30~250mm(max)Label thickness: 0.03~0.13mm FAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for.Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.Q4: If you buy our machines, can you offer us wear-out spare parts?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
