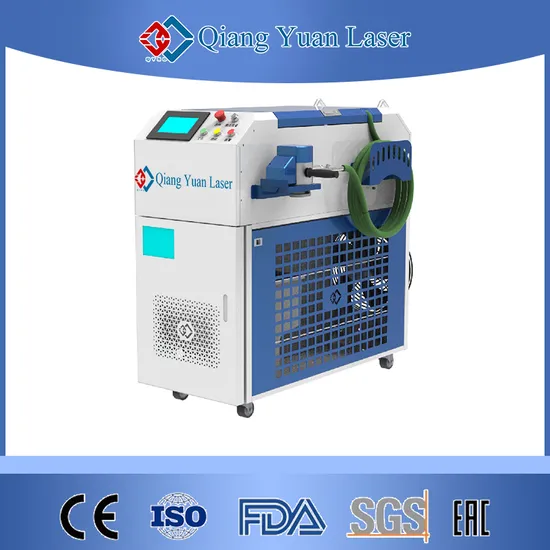

Excellent Cleaning Effect 500W Top Hat Beam Laser Cleaner to Remove The Rust, Dust, Oil, Grease, Oxidation, Painting, Coating Quickly

Product Description

Excellent cleaning effect 500w top hat beam laser cleaner to remove the rust, dust, oil, grease, oxidation, painting, coating quickly
Product Description
Using MOPA pulsed fiber laser, a variety of pulse waveform selection, to meet the cleaning of different materials. The single pulse energy is large, the cleaning efficiency is high, the spot energy distribution is uniform, and the cleaning does not damage the substrate. The chassis structure is easy to integrate and has a large processing range.
It can non-destructively remove oil, corrosion, paint and other pollutants on the metal surface, which is green environmental protection pollution-free.
Product Parameters

Model	QYCL-FP200A	QYCL-FP300A	QYCL-FP500A	QYCL-FP1000A-15	QYCL-FP1000A-50
Laser power	200~220W	300~320W	500~520W	1000W
Single pulse energy (mj)	13		50	15		50
Laser head weight(kg)	1.5
Net weight(kg)	144		205
Package weight(kg)	180		285
Rated power(kW)	2.5	3	5	9
Power adjustment range(%)	10-100
Scanning width(mm)	10-100
Focal length(mm)	100/160/254/330/420
Operation mode	Pulse
Central wavelength(nm)	1060~1070
Cooling method	Water Cooling
Water temperature	22ºC-26ºC
Cooling water	Distilled water, Plasma water
Fiber length(m)	5m (Optional 10m)		10m
Output mode	QCS		QBH
Auxiliary gas	Filtered dry compressed air
Laser source type	Pulsed fiber laser
Machine dimension(mm)	1110*490*750		1240*510*1040
Package size(mm)	1200*560*950		1360*600*1405
Voltage power (V)	220		380
Working environment requirement	Environmental humidity 10%~ 85%RH, no exposure No explosive and corrosive gases of equipment installation The environment temperature is 10 ° C to 40 ° C

Gaussian Beam:
-Gaussian beam has a typical Gaussian power distribution, that is, the center brightness is high and the edge brightness is low.
-Gaussian beam can form a relatively small light spot on the surface of the object, so it can provide high beam focus and energy density, thereby improving the cleaning effect.
Top-hat / Flat-top:
-Top-hat beams have a more uniform power distribution, that is, the power is evenly distributed throughout the entire spot area. It can form a uniform light spot on the surface of the object, so it can cover a larger cleaning area and have a faster cleaning speed.
- Top-hat laser cleaning machine is suitable for some scenarios that require high cleaning speed.
Certifications
Related Products

Application
Our Advantages
Company Profile
SDQY Laser factory is an enterprise with strong research and development capabilities and advanced technology. It has a variety of high-performance products in the field of laser cleaning, including pulse laser cleaning machines and continuous laser cleaning machines.
With customer
Germany Australia Malaysia
England Mexica Poland

We welcome agents to negotiate.

---
