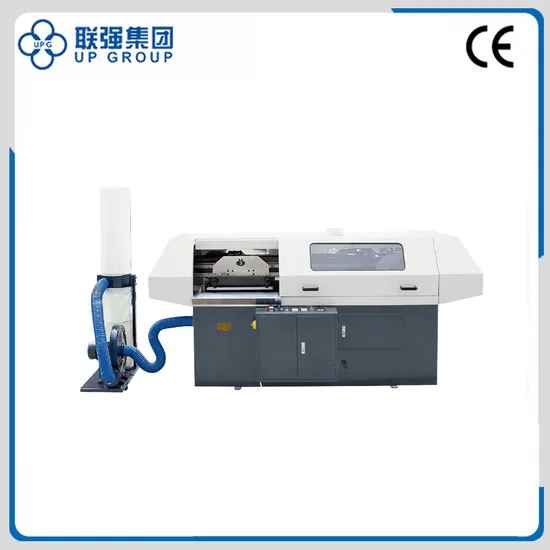

LQ-TB50/4D Economic and Environmental Ellipse Binding Machine

Product Description

Product Description This machine is the economic and environmental mucus binder developed to replace the straight thread binder in accordance with real status of domestic &overseas printing and mucus binding industries. lt has 4 book clamps, can coat the backup mucus twice cut off frontal and back mucus and make stepless change. thus is the most advanced semiautomatic ellipse binder at home When works,this machine is offered by manpower for book core, milling back, opening groove, back mucus coating side mucus coating cover packing cover impressing, finished-product output, till final nice products.
This machine adopts multi advanced techniques such as frequency speed-regulation control, PID temperature control, photoelectric recognition control etc.. and a great deal of imported electric element, which can enhance the dependability greatly. It is convenient to operate and adjust, and is perfected by the attached paper scraps suction device and waste-gas exhaust. This machine not only uses thread mucus binding, but also not thread mucus binding thus is the ideal equipment of various medium or small sized printing factories.
Heavy-duty type:
Maior characteristics of double column-guided twin-cam upper-sealing mechanism
1.Strong wearing resistance
2.High precision
3.Great clamp force
4. Steady top down
5.Indeformable front and back clamp plates
At present, it is the most advanced one among the international similar machines, and the upper-sealing clamp mechanism has won several national patents.
Product Parameters

Binding size	Max:450*390mm Min:100*120mm
Binding thickness	2-50mm
Binding speed	Max:1600 Books / Hour
Power required	9Kw
Weight	1600Kg
Dimensions	2800*1200*1200mm

Company Profile
Superiority
Our Customers
Exhibitions
Our Services Pre-sales Service
We provide all information and materials of our products to the valuable customers and partners so as to support their business and development. We also will give a preferential price for the first few machines, the samples for the printing, packaging and consumables are available, but the freight should be borne by the customers and partners.
In-sales Service
The delivery time of the ordinary equipment is generally 30-45 days after receipt of deposit. The delivery time of the special or large scale equipment is generally 60-90 days after receipt of the payment.
After-sales Service
The quality guarantee period of the product is 13 months after leaving the Chinese port. We can provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including the costs of spare parts and freight charges etc. During the warranty period, if it is damaged caused by our manufacturing failure, we will provide all repair or replacement free of charge.
Other Service
We can design special products according to customer's requirements on various aspects, including style, structure, performance, color etc. In addition, OEM cooperation is also welcome.

---
