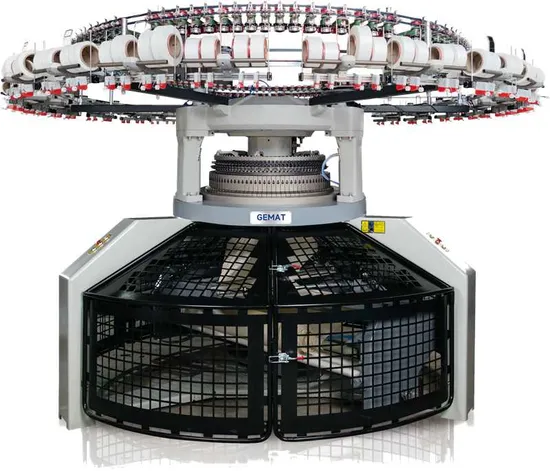

High Speed Double Jersey Open Width Circular Knitting Machine

Product Description

Product Description 1. Engineered with a robust structure, this machine operates seamlessly at speeds of up to 25-30 RPM, all while maintaining a quiet environment with reduced decibel levels.
2. Featuring a three-shaft transmission system, this machine enhances reliability and durability, ensuring exceptional stability and high-speed dynamic accuracy.
3. The yarn feeder offers ultimate versatility with adjustments possible in all four directions - right, left, forward, and backward.
4. Equipped with 2-track dial and 4-track cylinder cams, the machine enables the weaving of diverse patterns by simply rearranging the cam settings to meet various requirements.
5. Top and bottom gears are designed with an innovative oil-soaking feature that boosts stability, reduces noise, and minimizes the risk of fabric damage.
6. All cams are crafted from high-grade alloy steel, processed with precision CNC technology and CAD/CAM heat treatment, ensuring unmatched hardness and wear resistance.
Product Features
*Our Open Width Knitting Machine delivers exceptional fabric quality, free from any center creases across the entire fabric surface.
*Equipped with an advanced roller speed adjustment device, the cloth-cutting machine ensures uniform and stable knitting tightness for unparalleled fabric texture.*Designed on a double jersey machine, it produces a variety of no-folding double jersey fabrics. The automatic cloth cutting system guarantees minimal fabric waste.*Conversion Kits are available to adapt the machine to a Tubular Machine Frame for versatile usage.*Opt for the Jumbo Industrial Frame to facilitate the production of mass fabric rolls with ease.
TECHNICAL DATA

DIAMETER	GAUGE	FEEDER	R.P.M
25"-38"/2.1 Feeders per inch	52F-84F	12G-40G	18-40 R.P.M
25"-44"/2.4 Feeders per inch	60F-106F	12G-40G	18-40 R.P.M
30"-34"/3.2 Feeders per inch	96F-108F	12G-32G	18-40 R.P.M
25"-44"/2.8 Feeders per inch	70F-122F	12G-32G	18-40 R.P.M

---
