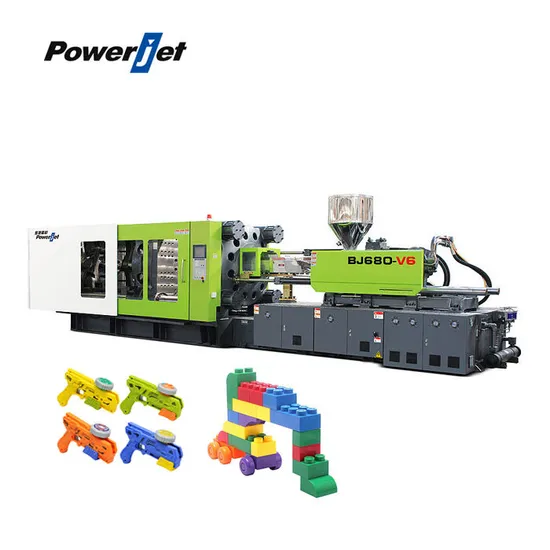

Energy Saving Servo System Injection Molding Machine Children PVC Toys Making Machines

Product Description

STANDARD INJECTION MOLDING MACHINE
With The New Driving System For Our Standard Injection Molding Machine, BJ Series Saving More Energy Than Before. The Motor Will Stop At The Stage Of Cooling For Saving Energy And Also Can Provide Higher Injection Accuracy And Speed.
Clamping Force - 50~1380(Ton)
Driving System - Hydraulic
Motor Type - Servo Or Variable
Applications - Food And Beverage Packaging, Necessities Products, Home Appliances, Electrical Components, Automotive Parts
FEATURES:
Variable Pump System:
Perfect combination between computer and high efficient proportional plunger variable pump saves electricity by 25%-50%.
Clamping System:
Reliable and durable, Effective mold protection High repeatability of mold opening and closing.
Injection System:
Stable & precise, easy for adjustment & operation by efficient separating screw and high mixing screw increase the range of material used.
Control System:
User-friendly control system, powerful, fast, precise control, easy to operate, the program can meet various process needs.
Lubrication System:
Major friction parts are equipped with lubrication points. Electric lubricant pump controlled by computer sends automatically lubricating oil (grease) to lubrication points.

Product Parameters

	DESCRIPTION	UNIT	BJ680-V6
CLAMPING UNIT	Clamping force	KN	6800
	Opening stroke	mm	930
	Max.datlight	mm	1870
	Platen size	mm	1340*1340
	Space between bars	mm	940*940
	Max.mold height	mm	940
	Min.mold height	mm	350
	Ejector stroke	mm	265
	Ejector force	KN	184
INJECTION UNIT	Screw diameter	mm	90
	Screw L/D Ratio	L/D	22.4
	Injection Pressure	MPa	190
	Shot volume	cm3	2863
	Screw stroke	mm	450
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	55/25.1+30.8
	Heater power	kW	38

Company Profile
Powerjet Plastic Machinery Co., LTD Focus On Manufacturing And Development Of Injection Molding Machine And Blow Molding Machine Over 20 Years. Powerjet And Installed Over 18,500 Molding Machines Worldwide And Renowned In "Energy-Saving, High Performance, High Speed, Precision".Factory in 50,000 square meters, with more than 350 staff members, over 20 branch offices across the country with advanced experience and lean production.
And we also focus on the development of special injection molding machines according to the customer's need, like machines for PET preform, PVC/PPR fitting, thin-walled product, silicone, batelite, and multi-material products, and also provide the turnkey projects for the customers.
Our Services & Strength Established distributors in multiple countries like Thailand, Malaysia, Indonesia, Vietnam, Uzbekistan, USA, Mexico, Brazil, and Pakistan. With a global sales network, our local offices and agents can provide more convenient and sincere services. 1:Agent In Worldwide
Setting Up Agent In More Than 20 Countries For Sales And Support
2:Lifetime Support
24 Hours Online Service And Overseas Installation & Maintenance
3:Spare Parts
We Supplying Screw, Motor, Control Panel And Plastic Mold For Machines
4:Operation Training
Support Training To Engineer For Setup, Processing & Troubleshooting
5:Plastic Mold Testing
Provide Testing Mold Service Before Customer Receiving The Machine
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time?
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.

---
